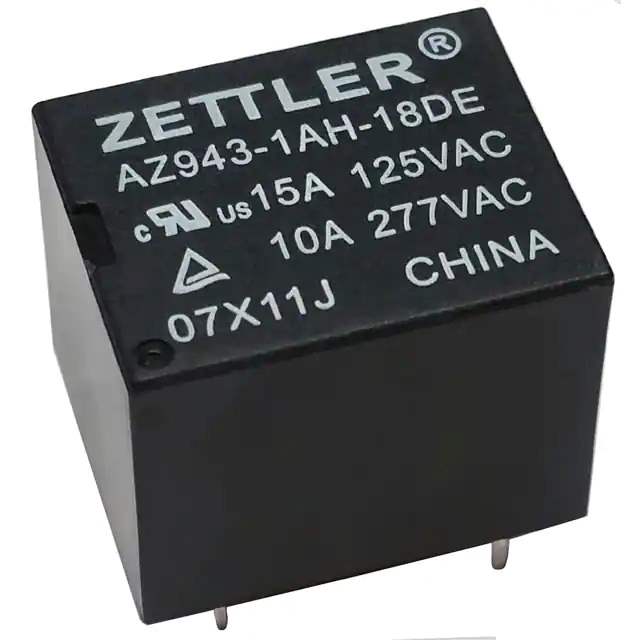

AZ943-1AH-24DE Real Image
Same model may have multiple batches, images only for reference.

AZ943-1AH-24DE

Part No AZ943-1AH-24DE
Manufacturer American Zettler, Inc.
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 15A 24V / General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
Datasheet
AZ943-1AH-24DE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr American Zettler, Inc.
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 15 A
Switching Voltage 277VAC, 30VDC - Max
Coil Current 15 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class B
Must Operate Voltage 18 VDC
Must Release Voltage 2.4 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 90°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 1.6 kOhms
Base Product Number AZ943
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 818320-AZ943-1AH-24DE
Ultra Librarian 3D Model Ultra Librarian AZ943-1AH-24DE CAD Model

Description

The AZ943-1AH-24DE is a power relay from American Zettler, Inc.

  • Applications: Power relay
  • Current Rating: Over 2 Amps
  • Termination Style: PC pin
  • Sealed: Fully sealed
  • Package: Tube
  • Standard Package: 20 pieces
  • Coil Voltage: 24VDC
  • Contact Rating: 15A
  • Temperature Range: -40°C to 90°C
  • Status: Active
  • ECCN Classification: EAR99
