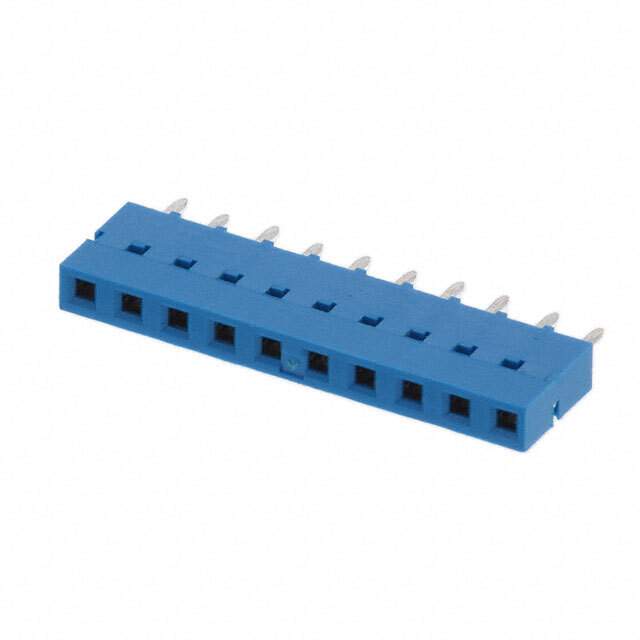

The Amphenol FCI Dubox series connector is a through-hole receptacle connector with 10 positions and a push-pull fastening type.

• Connector Type: Receptacle
• Positions: 10
• Fastening Type: Push-pull
• Insulation Material: Thermoplastic, Glass-filled
• Flammability Rating: UL94 V-0
• Contact Shape: Square
• Contact Type: Female Socket
• Contact Material: Phosphor Bronze
• Pitch-Mating: 0.100" (2.54mm)
• Contact Finish: Gold, 30μin (0.76μm)
• Post Contact Finish: Tin, 78.7μin (2.00μm)
• Applications: Automotive, General Purpose, Industrial, Telecommunications
• Mated Stacking Height: 11.04mm
• Insulation Height: 0.275" (6.99mm)
• Loaded Positions: All 10
• Rows: One
