Analog Devices Inc. AD7683BCPZRL7 Precision ADC

The AD7683BCPZRL7 is a high-performance, 16-bit successive approximation analog-to-digital converter (ADC) from Analog Devices Inc., designed to deliver exceptional accuracy and precision for a wide range of applications. This compact, low-power component is an ideal solution for systems requiring high-resolution analog-to-digital conversion without sacrificing performance or power efficiency.

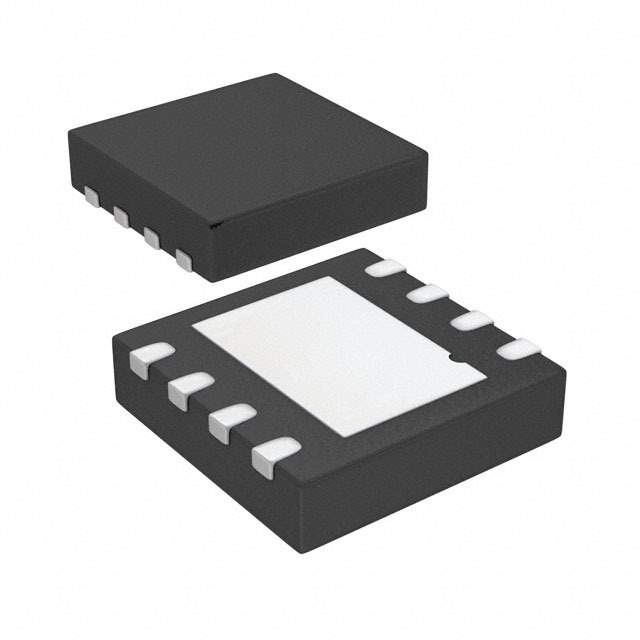

Encased in a 10-lead LFCSP (Lead Frame Chip Scale Package), the AD7683BCPZRL7 features a pseudo-differential unipolar input, which is highly beneficial in reducing common-mode noise and improving signal integrity. This makes the device particularly well-suited for precision measurement and data acquisition systems, such as medical devices, industrial control, and instrumentation applications.

One of the standout features of the AD7683BCPZRL7 is its throughput rate of 100 kSPS (kilo-samples per second), providing a rapid data acquisition capability that is essential for systems requiring real-time monitoring and control. Moreover, the device operates on a single 2.5 V power supply, with a typical power consumption of only 1 mW at a 100 kSPS throughput rate, making it an energy-efficient choice for battery-powered and portable devices.

The ADC offers a SPI-compatible serial interface, ensuring easy integration with microcontrollers and digital systems. With its no missing codes performance and a Signal-to-Noise Ratio (SNR) of 91 dB, the AD7683BCPZRL7 guarantees reliable and accurate conversion of analog signals to digital data. The device also includes an on-chip track-and-hold circuit, which simplifies the design by eliminating the need for an external sample-and-hold circuit.

For design flexibility, the AD7683BCPZRL7 features an internal 2.5 V reference, but it also allows for an external reference to be used, giving designers the option to customize the ADC's performance to meet specific application requirements. The device's robustness is further enhanced by its wide operating temperature range of -40°C to +125°C, which ensures stable performance across diverse environmental conditions.

In summary, the AD7683BCPZRL7 from Analog Devices Inc. is a versatile, high-precision ADC offering excellent performance and low power consumption in a small package. Its advanced features and ease of use make it an excellent choice for precision data acquisition in a variety of applications.
