Analog Devices ADM6384YKS29D3Z-R7 Microprocessor Reset Circuit

The ADM6384YKS29D3Z-R7 is a state-of-the-art microprocessor supervisory circuit designed and manufactured by Analog Devices Inc., a leader in high-performance semiconductors. This compact and efficient device is specifically engineered to monitor power supplies in digital systems, ensuring proper operation by providing a reset signal to the host microprocessor during power-up, power-down, and brownout conditions.

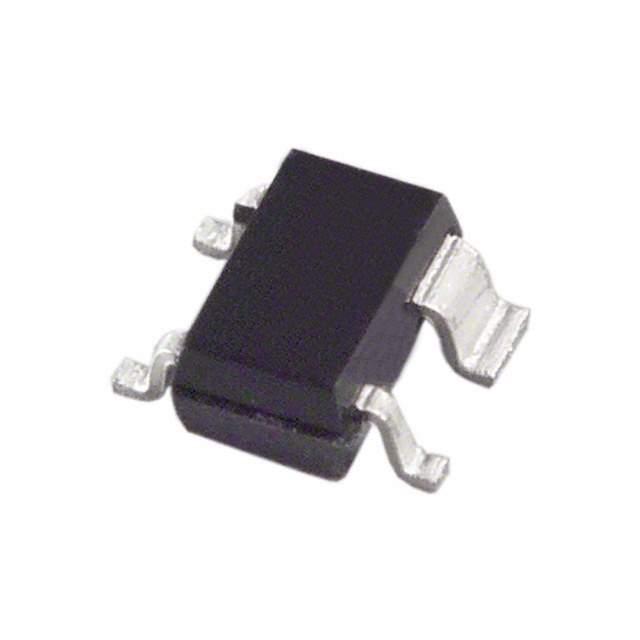

Encased in a small 4-pin SC70 package, the ADM6384YKS29D3Z-R7 is ideal for space-constrained applications where reliability and precision are paramount. The device features a fixed reset threshold voltage of 2.93V, which is meticulously tailored to the needs of 3V to 3.6V powered circuits. This makes it an excellent choice for portable and battery-powered equipment, where maintaining the integrity of processor operations is critical.

One of the key attributes of this supervisory circuit is its ability to assert a reset signal whenever the monitored power supply voltage falls below the factory-set reset threshold. The reset output remains asserted for a minimum of 140ms after the supply voltage rises above the reset threshold, ensuring that the microprocessor has adequate time to initialize and stabilize before resuming operation. This feature significantly enhances system reliability and prevents the processor from executing code in an unpredictable state.

Furthermore, the ADM6384YKS29D3Z-R7 offers a low power consumption profile, which is essential for extending the battery life in portable devices. With a quiescent current of typically only 3.5μA, the device is an economical choice for power-sensitive applications. Additionally, it is characterized for operation over a wide temperature range of -40°C to +125°C, making it suitable for use in harsh environments and a variety of industrial applications.

For designers and engineers looking for a robust and precise power monitoring solution, the ADM6384YKS29D3Z-R7 from Analog Devices Inc. offers an excellent combination of features, size, and performance. Its ease of integration, low power consumption, and stringent reset logic make it an indispensable component in the design of reliable digital systems.
