Introducing the ADP122ACPZ-3.3-R7 LDO Voltage Regulator from Analog Devices Inc.

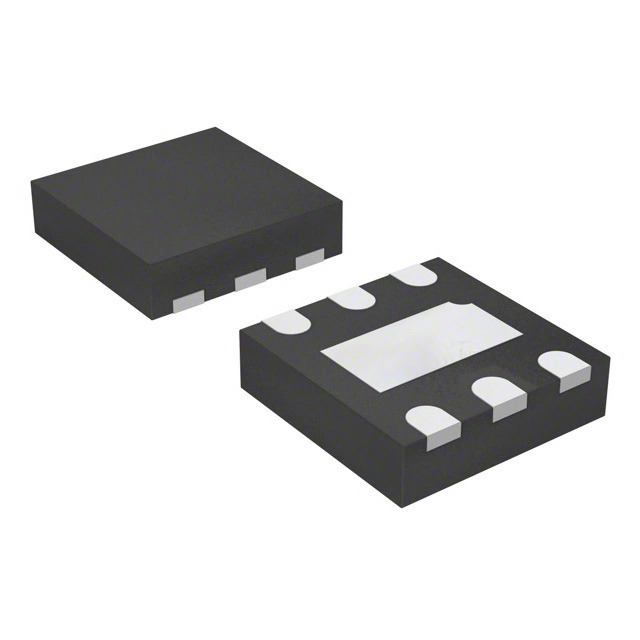

The ADP122ACPZ-3.3-R7 is a high-performance, low-dropout linear regulator (LDO) that delivers a fixed output voltage of 3.3V with outstanding accuracy. This compact and efficient power management solution is manufactured by Analog Devices Inc., a leader in the design and production of high-quality integrated circuits. The ADP122ACPZ-3.3-R7 is housed in a space-saving LFCSP (Lead Frame Chip Scale Package) that measures just 3mm x 3mm, making it an excellent choice for space-constrained applications.

Key Features

• Stable Output: The device provides a stable and precise 3.3V output, ensuring reliable operation for sensitive electronic components.
• High Accuracy: With an accuracy level of ±1%, the ADP122ACPZ-3.3-R7 maintains consistent performance across various conditions.
• Low Dropout: The LDO features a low dropout voltage, which allows it to continue delivering a regulated output even when the supply voltage is close to the output voltage.
• Low Quiescent Current: Its low quiescent current makes it an ideal choice for battery-powered devices, helping to extend battery life.
• Thermal Protection: The device includes thermal overload protection, safeguarding it from damage due to overheating.
• Current Limiting: Built-in current limiting prevents damage to the regulator and the load in the event of a fault condition or excessive load.

Applications

The ADP122ACPZ-3.3-R7 is versatile and can be used in a wide range of applications, including:

• Portable and battery-powered electronics
• Microprocessor and microcontroller systems
• Data storage and networking devices
• Medical and healthcare equipment
• Industrial and automation systems

Easy Integration

With its compact footprint and simple external components requirements, the ADP122ACPZ-3.3-R7 is easy to integrate into existing and new designs. It requires only input and output capacitors for stability, enabling designers to minimize the overall solution size.

Reliability and Performance

Analog Devices Inc. is renowned for its commitment to quality and reliability. The ADP122ACPZ-3.3-R7 is no exception, offering consistent performance and robust operation, making it a trusted choice for engineers and designers seeking a reliable power management solution.

For detailed specifications, application notes, and additional resources, visit the Analog Devices Inc. website or contact their support team for technical assistance.
