Analog Devices Inc. LT8705EFE Overview

The LT8705EFE is a versatile and high-performance DC/DC controller from Analog Devices Inc., designed to cater to a wide array of power conversion applications. It is a synchronous buck-boost converter that can regulate output voltages that are above, below, or equal to the input voltage, making it an ideal choice for applications that require a stable and flexible power supply solution.

Key Features

• Wide Input Voltage Range: The LT8705EFE operates over a wide input voltage range of 2.8V to 80V, providing a versatile solution for varying power conditions.
• Adjustable Output Voltage: Its output voltage can be adjusted from 1.3V to 80V, ensuring compatibility with a broad spectrum of devices and systems.
• High Efficiency: The device features synchronous rectification, delivering high efficiency across a wide range of load currents.
• Four Feedback Loops: It has four separate feedback loops that allow for regulation on the V<sub>OUT, V<sub>IN, +V<sub>OUT to –V<sub>OUT, and V<sub>OUT to V<sub>IN differentials.
• Multiple Operating Modes: Users can select from Burst Mode operation for low quiescent current, pulse-skipping mode for low noise, or external synchronization.

Applications

The LT8705EFE is well-suited for a variety of applications including automotive, industrial, telecommunications, and portable devices that require efficient power conversion. Its ability to provide a regulated output with a variable input makes it particularly useful for battery-powered applications where input voltage can fluctuate significantly.

Package and Reliability

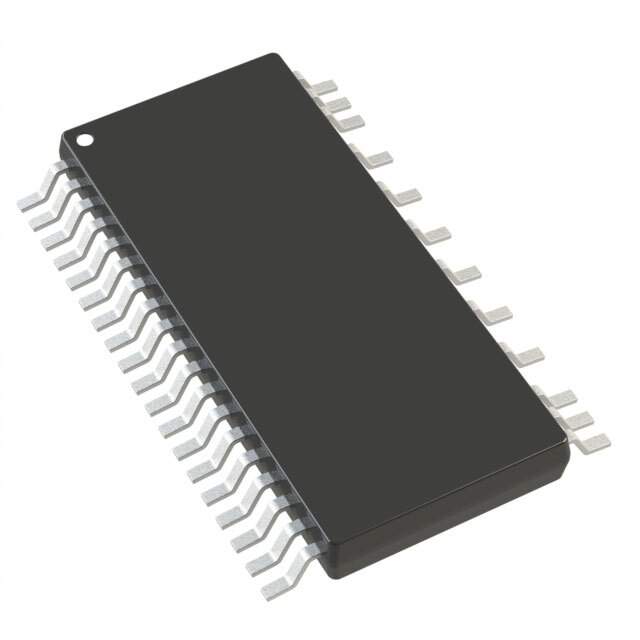

Packaged in a TSSOP-38 (EFE) with exposed pad for improved thermal performance, the LT8705EFE is built to ensure reliable operation even in demanding conditions. It includes robust protection features such as overvoltage, overcurrent, and overtemperature protection, safeguarding both the converter and the system it powers.

Conclusion

With its wide input and output voltage ranges, high efficiency, and flexible operating modes, the LT8705EFE from Analog Devices Inc. is a powerful component for designers looking to solve complex power management challenges. Its advanced features and robust packaging make it a reliable and efficient choice for a wide range of power conversion needs.
