Analog Devices Inc. LTC3310SIV#TRMPBF

The LTC3310SIV#TRMPBF is a high-performance, synchronous step-down switching regulator from Analog Devices Inc., a leader in high-performance analog, mixed-signal, and digital signal processing integrated circuits. This advanced regulator is designed for precision, efficiency, and versatility, catering to a wide range of applications, including telecommunications, networking equipment, industrial systems, and portable devices.

Featuring a wide input voltage range from 2.25V to 5.5V, the LTC3310SIV#TRMPBF is suitable for single-cell Li-Ion, multi-cell alkaline, or NiMH applications, as well as standard 3.3V or 5V power rails. The device can deliver a continuous output current up to 10A, making it capable of powering demanding applications. Its output voltage is adjustable from 0.5V to VIN, providing flexibility to meet various design requirements.

Efficiency is a key aspect of the LTC3310SIV#TRMPBF, with its proprietary Silent Switcher® 2 architecture that minimizes EMI emissions, a critical feature for noise-sensitive applications. This allows the device to be used in close proximity to sensitive RF or audio components without compromising performance.

The regulator operates at a selectable fixed frequency between 2MHz and 4MHz, or it can be synchronized to an external clock within the same range. This high-frequency operation enables the use of small, low-profile inductors and ceramic capacitors, reducing the overall solution footprint and allowing for a more compact design.

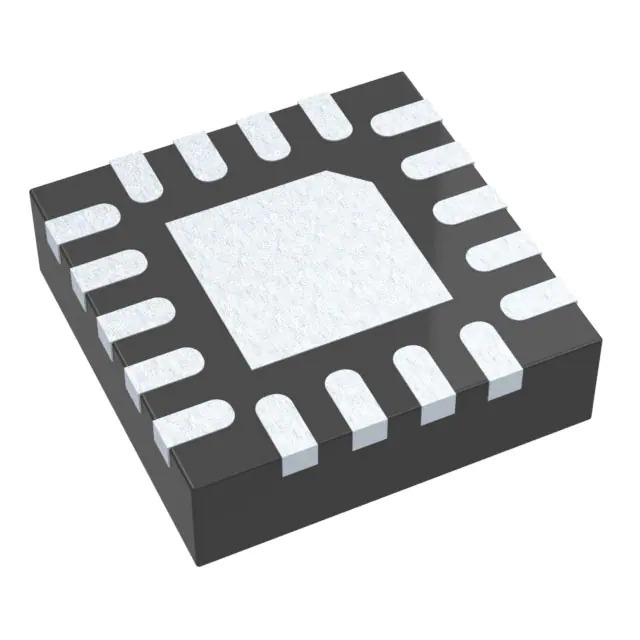

The LTC3310SIV#TRMPBF also includes a range of protective features to ensure reliable operation. These include over-temperature protection, over-current protection, and output over-voltage protection. The device's thermally enhanced 3mm x 3mm LQFN package ensures efficient heat dissipation, contributing to its robustness and longevity.

For design flexibility, the LTC3310SIV#TRMPBF is offered in a RoHS-compliant, 22-lead LQFN package. This product is also available in tape and reel packaging, denoted by the TRMPBF suffix, which is ideal for automated, high-volume manufacturing processes.

In conclusion, the LTC3310SIV#TRMPBF from Analog Devices Inc. is a state-of-the-art solution for designers seeking a high-efficiency, compact, and EMI-friendly voltage regulator capable of delivering significant power in a variety of demanding applications.
