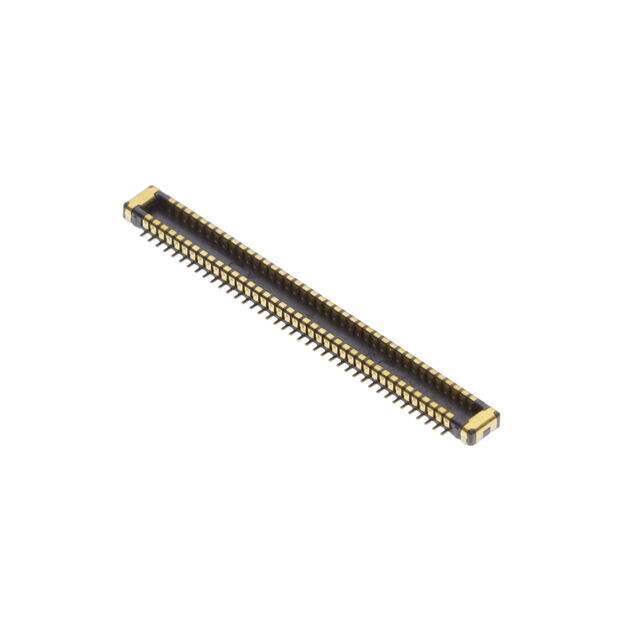

Same model may have multiple batches, images only for reference.
145897078002829+ KYOCERA AVX
Same model may have multiple batches, images only for reference.

145897078002829+

Part No 145897078002829+
Manufacturer AVX Corp/Kyocera Corp
Catalog Rectangular - Board to Board Connectors
Description BOARD TO BOARD
Datasheet
145897078002829+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1309854-145897078002829+
Manufacturer KYOCERA AVX
Category Connectors, Interconnects > Rectangular Connectors > Arrays, Edge Type, Mezzanine (Board to Board)
Part Status Active
Connector Type Plug, Outer Shroud Contacts
Number of Positions 78
Pitch 0.014" (0.35mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.8mm
Height Above Board 0.026" (0.65mm)
Ultra Librarian 3D Model Ultra Librarian 145897078002829+ CAD Model

Description

78 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
