Same model may have multiple batches, images only for reference.

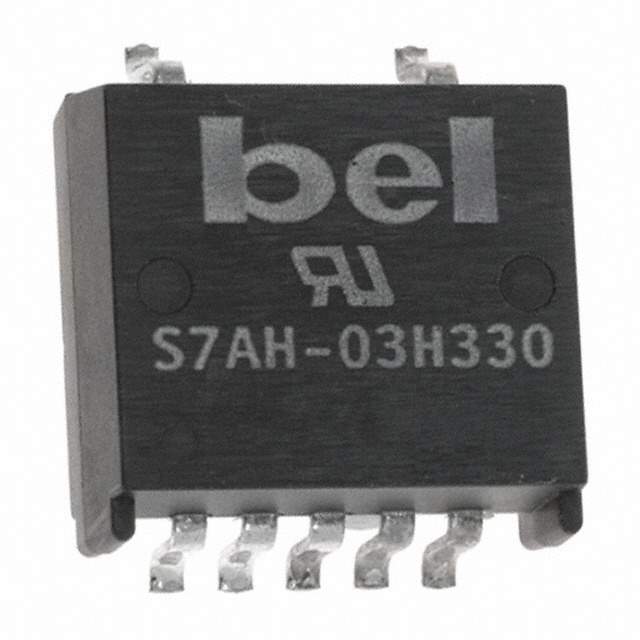

S7AH-03H330R Real Image
Same model may have multiple batches, images only for reference.

S7AH-03H330R

Part No S7AH-03H330R
Manufacturer Bel Power Solutions
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 3.3V 10W / Non-Isolated PoL Module DC DC Converter 1 Output 3.3V 3A 4.9V - 32V Input
Datasheet
S7AH-03H330R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Bel Power Solutions
Series x7AH-03H
Package Tape & Reel (TR)
Product Status Obsolete
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 4.9V
Voltage - Input (Max) 32V
Voltage - Output 1 3.3V
Current - Output (Max) 3A
Power (Watts) 10 W
Applications ITE (Commercial)
Features Remote On/Off, OCP, SCP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 90%
Mounting SMD (SMT)
Package / Case 7-SMD Module
Dimension 0.78" L x 0.70" W x 0.32" H (19.7mm x 17.8mm x 8.1mm)
Control Features Enable, Active High
Other Names 507-1137-2,507-1137-1,179-S7AH-03H330RTR,507-1137-1,S7AH03H330R,507-1137-2,507-S7AH-03H330RCT
Standard Package 200
RoHS Status RoHS non-compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1237566-S7AH-03H330R
Ultra Librarian 3D Model Ultra Librarian S7AH-03H330R CAD Model

Description

The Bel Power Solutions S7AH-03H330R is a non-isolated PoL module that features remote On/Off, OCP, SCP, and UVLO.

  • Application: ITE (Commercial)
  • Power: 10W
  • Output Voltage: 3.3V
  • Current Output: 3A
  • Voltage Input: 4.9V to 32V
  • Efficiency: 90%
  • Operating Temperature: -40°C ~ 85°C
  • Dimensions: 0.78" L x 0.70" W x 0.32" H (19.7mm x 17.8mm x 8.1mm)
  • Package: Tape & reel
