Same model may have multiple batches, images only for reference.

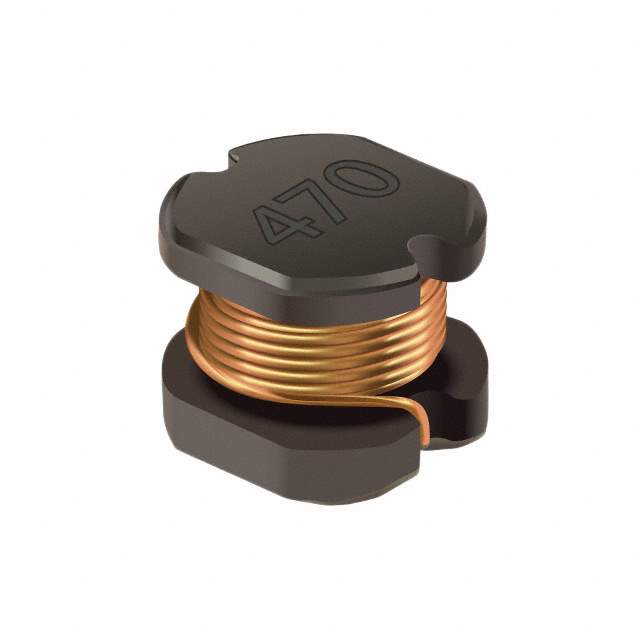

SDE0604A-8R2M Real Image
Same model may have multiple batches, images only for reference.

SDE0604A-8R2M

Part No SDE0604A-8R2M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDE0604A-8R2M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDE0604A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 8.2 µH
Tolerance ±20%
Current Rating (Amps) 2.8 A
Current - Saturation (Isat) 2.2A
Shielding Unshielded
DC Resistance (DCR) 90mOhm Max
Frequency - Self Resonant 31MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.228" L x 0.205" W (5.80mm x 5.20mm)
Height - Seated (Max) 0.189" (4.80mm)
Base Product Number SDE0604A
Other Names SDE0604A-8R2MCT,SDE0604A-8R2MTR,SDE0604A-8R2MDKR
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274913-SDE0604A-8R2M
Ultra Librarian 3D Model Ultra Librarian SDE0604A-8R2M CAD Model

Description

The Bourns SDE0604A series is a drum core, wirewound inductor that is unshielded and has a tolerance of ±20%.

  • Core Type: Drum Core
  • Inductor Type: Wirewound
  • Shielding: Unshielded
  • Tolerance: ±20%
  • Inductance: 8.2 μH
  • DC Resistance (DCR): 90 mΩ max
  • Frequency Self-Resonant: 31 MHz
  • Current Rating: 2.8 A
  • Temperature Range: -40°C to 125°C
  • Mounting Technology: SMD (SMT)
  • Package/Case: Nonstandard
  • Dimension: 0.228" L x 0.205" W (5.80mm x 5.20mm)
  • Packaging: Tape & Reel
