Same model may have multiple batches, images only for reference.

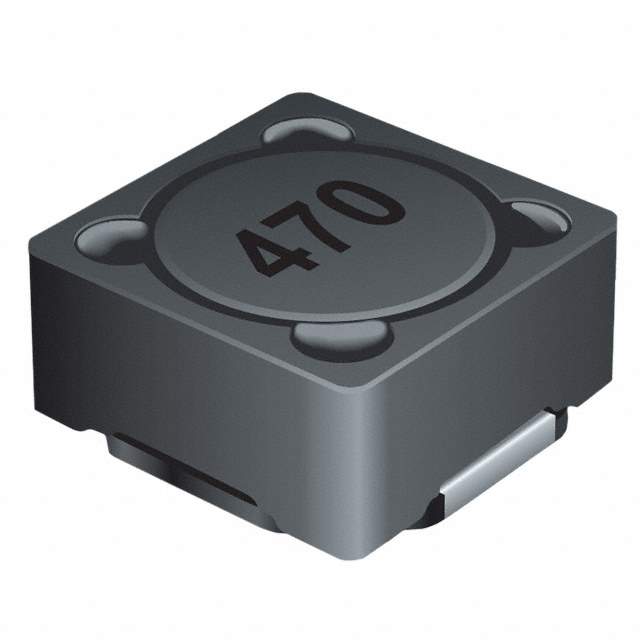

SRR1260A-390M Real Image
Same model may have multiple batches, images only for reference.

SRR1260A-390M

Part No SRR1260A-390M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR1260A-390M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR1260A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 39 µH
Tolerance ±20%
Current Rating (Amps) 2.8 A
Current - Saturation (Isat) 2.7A
Shielding Shielded
DC Resistance (DCR) 70mOhm Max
Q @ Freq 22 @ 2.52MHz
Frequency - Self Resonant 10.4MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max) 0.256" (6.50mm)
Base Product Number SRR1260A
Other Names SRR1260A-390M,SRR1260A-390MTR,SRR1260A-390MCT,SRR1260A-390MDKR
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273417-SRR1260A-390M
Ultra Librarian 3D Model Ultra Librarian SRR1260A-390M CAD Model

Description

The SRR1260A-390M is a fixed inductor that is manufactured by Bourns Inc.

  • Series: SRR1260A
  • Design: drum core, wirewound
  • Package/Case: non-standard
  • Height: 0.256 inches
  • Popularity: high popularity in the market with limited supply and demand status
  • Inductance: 39μH
  • Tolerance: ±20%
  • DC Resistance: 70mOhm max
  • Maximum Current: 2.8A
