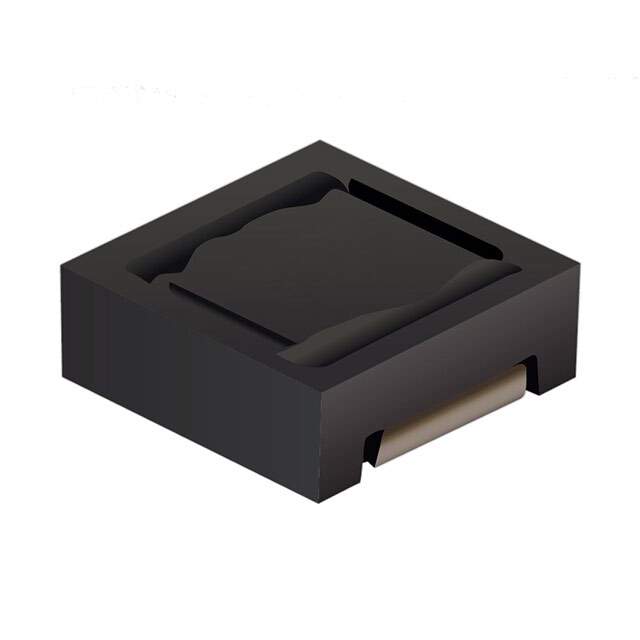

SRR4818A-180M Real Image
Same model may have multiple batches, images only for reference.

SRR4818A-180M

Part No SRR4818A-180M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR4818A-180M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR4818A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 18 µH
Tolerance ±20%
Current Rating (Amps) 1.4 A
Current - Saturation (Isat) 790mA
Shielding Shielded
DC Resistance (DCR) 280mOhm Max
Frequency - Self Resonant 28MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.189" L x 0.189" W (4.80mm x 4.80mm)
Height - Seated (Max) 0.079" (2.00mm)
Base Product Number SRR4818A
Other Names SRR4818A-180MDKR,SRR4818A-180MTR,SRR4818A-180MCT
Standard Package 800
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273287-SRR4818A-180M
Ultra Librarian 3D Model Ultra Librarian SRR4818A-180M CAD Model

Description

The Bourns Inc. SRR4818A series features an 18 µH drum core wirewound inductor that is shielded and mounted on a tape and reel package.

  • Inductance: 18 µH
  • Tolerance: ±20%
  • Maximum Current Rating: 1.4A
  • Operating Temperature Range: -40°C to 150°C
  • Frequency Self-Resonant: 28MHz
  • Standard Package: 800 pieces
  • Mounting: Surface mount
  • Core Material: Ferrite
  • Height: 0.079"
  • REACH: Unaffected
  • ECCN: EAR99
