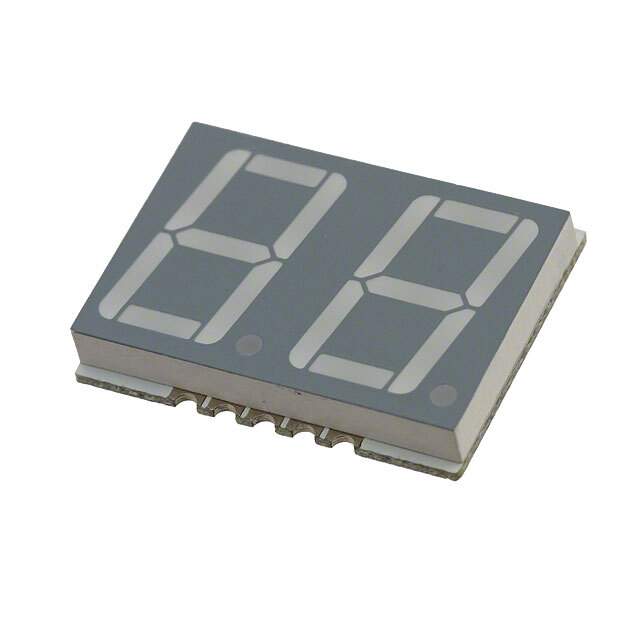

HDSM-541C Real Image
Same model may have multiple batches, images only for reference.

HDSM-541C

Part No HDSM-541C
Manufacturer Broadcom Limited
Catalog Display Modules - LED Character and Numeric
Description The HDSM-541x/543x is a dual digit display of 0.56” (14.22mm) height. This device utilizes AlInGaP / GaAs chips and has a grey top surface with white segments. | DISPLAY 2DIGIT RED CA 0.56"
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Reel
Number of Characters 2
Parts Dimension 0.669" H x 0.984" W x 0.148" D (17.00mm x 25.00mm x 3.75mm)
Digit/Alpha Size 0.56" (14.22mm)
Display Type 7-Segment
Common Pin Common Anode
Color Red
Voltage - Forward (Vf) 2V
Current - Test 20mA
Millicandela Rating 16mcd
Wavelength - Peak 632nm
Power Dissipation (Maximum) 65mW
Manufacturer Package 10-SMD, No Lead
Manufacturer Pack Quantity 1
MSL Level 3 (168 Hours)
Win Source Part Number 1179710-HDSM-541C
Manufacturer Homepage www.avagotech.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HDSM-541C CAD Model

Description

The Broadcom Limited 7-Segment Display is a high-performance optoelectronic component that is designed to display numeric and alphanumeric characters.

  • Package: 10-SMD, no lead
  • Manufacturer Pack Quantity: 1
  • Power Dissipation: 65mW
  • Voltage-Forward: 2V
