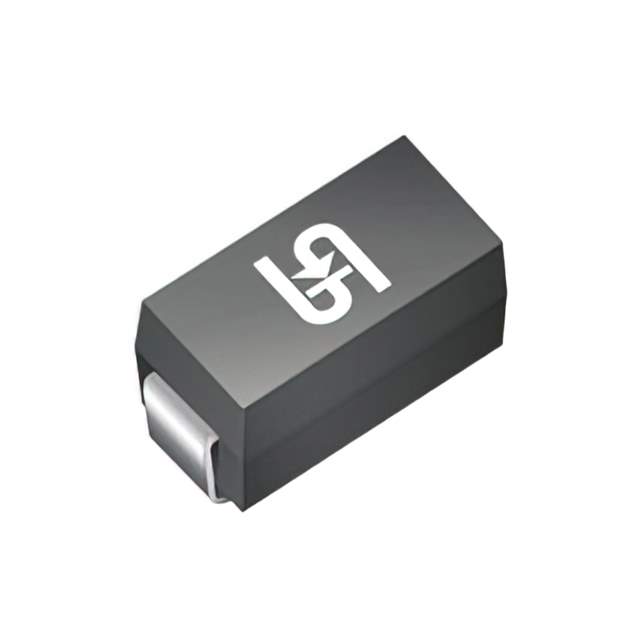

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

RoHS State Request Verification
Manufacturer Bytes
Win Source Part Number 1251490-SMBJ40C
Manufacturer Homepage 0
Package Tape & Reel (TR)
Product Status Obsolete
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 40V
Voltage - Breakdown (Min) 42.08V
Voltage - Clamping (Max) @ Ipp 67.73V
Current - Peak Pulse (10/1000µs) 9.3A
Power - Peak Pulse 600W
Power Line Protection No
Applications General Purpose
Operating Temperature -65°C ~ 150°C (TJ)
Grade -
Mounting Type Surface Mount
Package / Case DO-214AA, SMB
Supplier Device Package DO-214AA (SMBJ)
Product Status Active
Voltage - Breakdown (Min) 44.4V
Voltage - Clamping (Max) @ Ipp 71.4V
Current - Peak Pulse (10/1000µs) 8.8A
Operating Temperature -55°C ~ 150°C (TJ)
Supplier Device Package DO-214AA (SMB)
Ultra Librarian 3D Model Ultra Librarian SMBJ40C CAD Model

Description

The SMBJ40C is a surface mount transient voltage suppressor diode from Bytes.

  • Peak Pulse Power Dissipation: 600W
  • Breakdown Voltage: 40V
  • Purpose: Protect sensitive electronic equipment from voltage transients
  • RoHS Compliant: Yes
  • Applications: Data communication, industrial control, and automotive electronics
