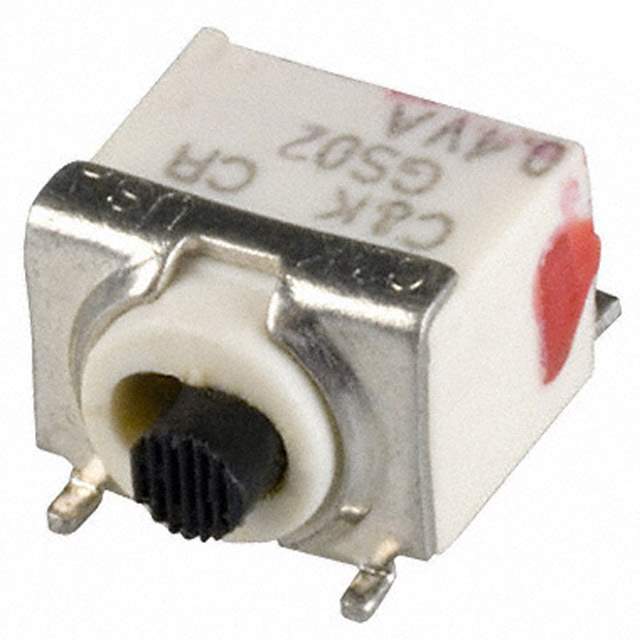

GS02MSABE Real Image
Same model may have multiple batches, images only for reference.

GS02MSABE

Part No GS02MSABE
Manufacturer C&K Components
Catalog Slide Switches
Description SWITCH SLIDE SPST 0.4VA 20V / Sealed Ultraminiature Slide Switches
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer C&K
Packaging Reel
Circuit SPST
Contact Timing Not Specified
Switch Function On-Off
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20V
Voltage Rating - DC 20V
Actuator Type Standard
Actuator Length 1.27mm
Contact Material Copper
Contact Finish Gold
Mounting Style Surface Mount, Right Angle
Termination Style Gull Wing
Features Epoxy Sealed Terminals
Temperature Range - Operating -40°C ~ 85°C
Actuator Material Polyetherimide (PEI)
Switch Travel 1.27mm
Mechanical Life 40,000 Cycles
Electrical Life 40,000 Cycles
Manufacturer Pack Quantity 600
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 813861-GS02MSABE
Ultra Librarian 3D Model Ultra Librarian GS02MSABE CAD Model

Description

The GS02MSABE is a SPST switch from C&K.

  • Actuator Type: Standard
  • Switch Function: On-Off
  • Actuator Length: 1.27mm
  • Switch Travel: 1.27mm
  • Electrical Life: 40,000 cycles
  • Mechanical Life: 40,000 cycles
  • Mounting Style: Surface Mount, Right Angle
  • Termination Style: Gull Wing
  • Actuator Material: Polyetherimide (PEI)
  • Contact Material: Copper
  • Contact Finish: Gold
  • Voltage Rating: 20V AC, 20V DC
  • Operating Temperature Range: -40°C ~ 85°C
