CSS-1300MC

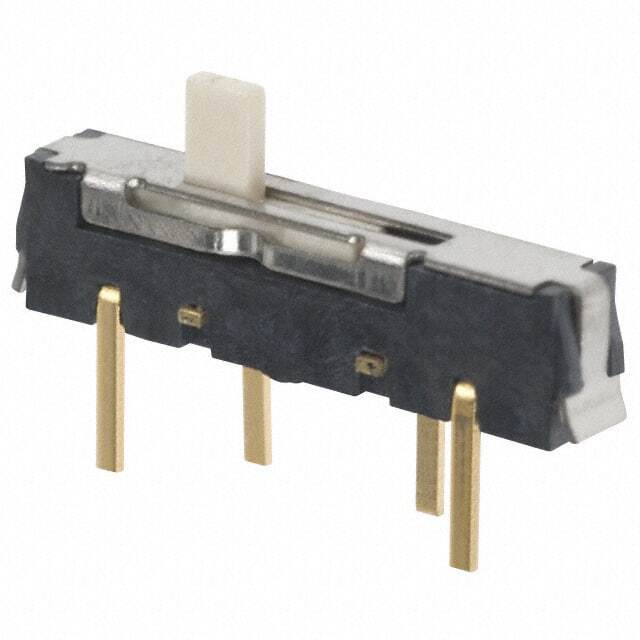

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Slide Switches
Mfr Nidec Copal Electronics
Series CSS
Package Tube
Product Status Active
Circuit SP3T
Contact Timing Non-Shorting (BBM)
Switch Function On-On-On
Current Rating (Amps) 100mA (DC)
Voltage Rating - DC 12 V
Actuator Type Standard
Actuator Length 2.00mm
Contact Material Copper Alloy
Contact Finish Gold
Mounting Type Through Hole
Termination Style PC Pin
Temperature Range - Operating -20°C ~ 70°C
Actuator Material Liquid Crystal Polymer (LCP)
Switch Travel 2.00mm
Electrical Life 10,000 Cycles
Operating Force 102 ~ 357gf
Base Product Number CSS-1300
Standard Package 38 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 867395-CSS-1300MC
Ultra Librarian 3D Model Ultra Librarian CSS-1300MC CAD Model

Description

The 867395-CSS-1300MC is a slide switch from the CSS series manufactured by Nidec Copal Electronics.

  • Series: CSS
  • Circuit: SP3T
  • Actuator Type: Standard
  • Voltage Rating: 12V DC
  • Current Rating: 100mA
  • Mounting Type: Through Hole
  • Temperature Range: -20°C to 70°C
  • Contact Finish: Gold
  • Contact Material: Copper Alloy
  • Packaging: Tube
  • Standard Package Quantity: 38 pcs
  • Part Status: Active
  • ECCN: Unspecified
