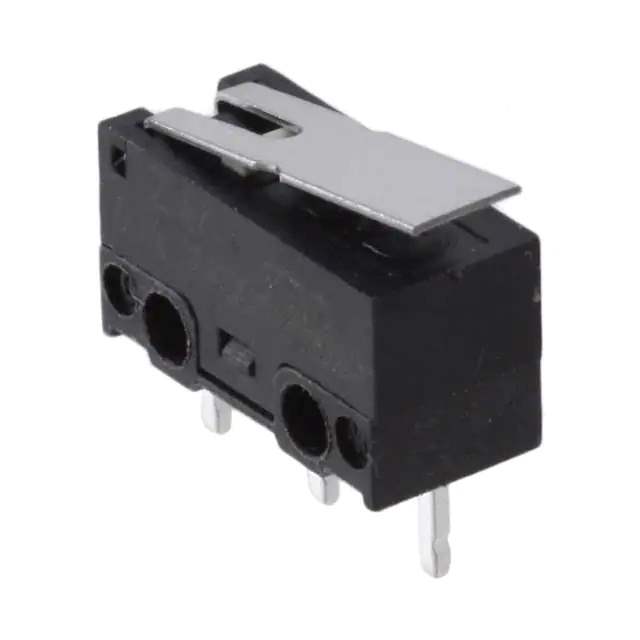

ZMA00A150L04PC Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr C&K Components
Series ZMA
Package Tray
Product Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 60 V
Actuator Type Lever, Straight
Mounting Type Through Hole
Termination Style PC Pin
Operating Force 50gf
Release Force 8.000gf
Operating Position 0.312" (7.9mm)
Pretravel 0.120" (3.0mm)
Overtravel 0.025" (0.6mm)
Temperature Range - Operating -40°C ~ 85°C
Electrical Life 300,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number ZMA00A150
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 849576-ZMA00A150L04PC
Ultra Librarian 3D Model Ultra Librarian ZMA00A150L04PC CAD Model

Description

The ZMA series limit switch by C&K Components is a reliable and versatile electronic component designed for various applications.

  • Voltage Rating: 125V AC and 60V DC
  • Contact Form: SPDT
  • Actuator Type: Lever, Straight
  • Operating Force: 50gf
  • Mechanical Life: 1,000,000 cycles
  • Pretravel: 0.120" (3.0mm)
  • Overtravel: 0.025" (0.6mm)
  • Mounting Type: Through-Hole
  • Temperature Range: -40°C to 85°C
