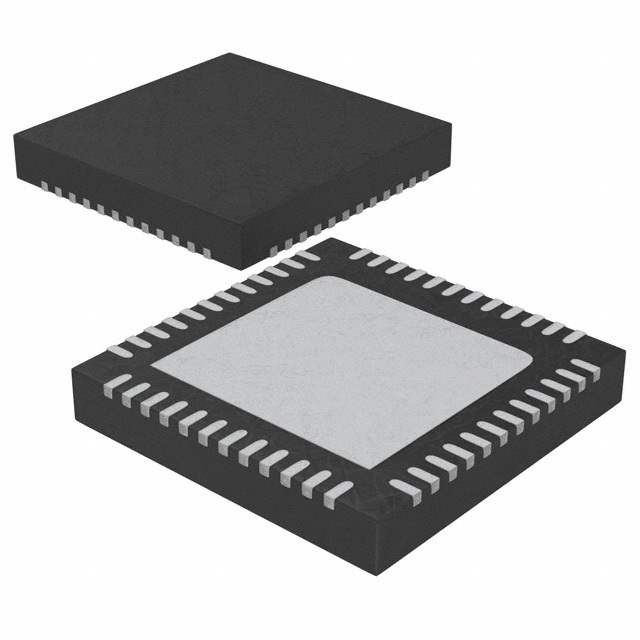

THL3502 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - LED Drivers
Mfr CEL
Series THine®
Package Tape & Reel
Product Status Active
Type Power Switch
Internal Switch(s) Yes
Number of Outputs 24
Voltage - Supply (Min) 3V
Voltage - Supply (Max) 5.5V
Voltage - Output 35V
Current - Output / Channel 100mA
Frequency 10MHz
Applications Backlight, Signage
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 48-VFQFN Exposed Pad
Supplier Device Package 48-QFN (7x7)
Base Product Number THL3502
Standard Package 2,600 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 684288-THL3502
Ultra Librarian 3D Model Ultra Librarian THL3502 CAD Model

Description

The THL3502 is a power switch IC designed for LED driver applications.

  • Series: THine®
  • Suitable for: Backlight and signage applications
  • Voltage Output: 35V
  • Frequency: 10MHz
  • Current per Channel: 100mA
  • Total Outputs: 24
  • Switches: Internal
  • Voltage Supply Range: 3V to 5.5V
  • Mounting Type: Surface Mount
  • Package: 48-VFQFN Exposed Pad
  • Operating Temperature: -40°C to 85°C
  • Manufacturer: CEL
  • Status: Active
