Products specifications

Categories RF/IF and RFID
Manufacturer CEL
Packaging Reel - TR
Status Obsolete(EOL)
Frequency - Lower 2.4GHz
Frequency - Upper 6GHz
Isolation @ Frequency 17dB @ 6GHz (typ)
Insertion Loss @ Frequency 0.7dB @ 6GHz
IIP3 50dBm (typ)
Topology Reflective
Circuit DPDT
P1dB 31dBm (typ) IP1dB
Impedance 50 Ohm
Temperature Range - Operating -45°C to 85°C
RF Type 802.11a/b/g/WiFi, WLAN
Case / Package 6-TSON
Win Source Part Number 396018-UPG2164T5N-E2
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian UPG2164T5N-E2 CAD Model

Description

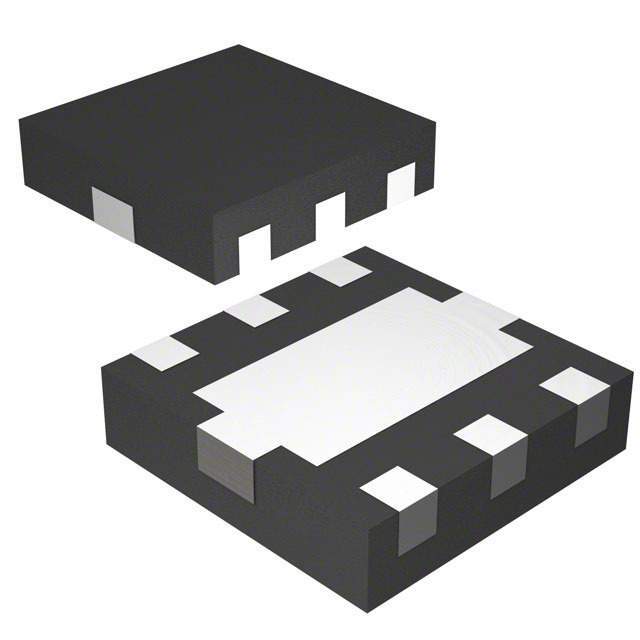

The UPG2164T5N-E2 from CEL is a reflective DPDT switch designed for use in RF applications such as 802.11a/b/g/WiFi and WLAN.

  • Impedance: 50 Ohm
  • Frequency Range: 2.4GHz to 6GHz
  • Isolation: 17dB @ 6GHz (typ)
  • Insertion Loss: 0.7dB @ 6GHz
  • IIP3: 50dBm (typ)
  • P1dB: 31dBm (typ) IP1dB
  • Package: This product is packaged in a 6-TSON case and has a high popularity in the market.
  • Supply and Demand Status: Its supply and demand status is balanced.
