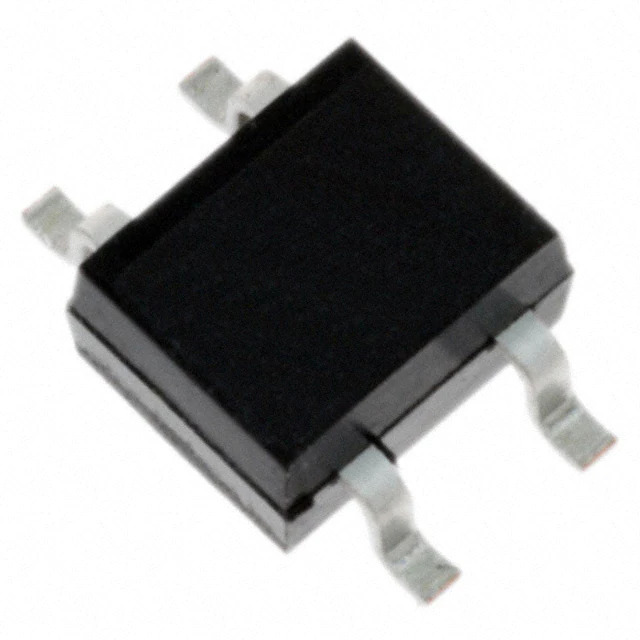

B1S-G Comchip Technology
Same model may have multiple batches, images only for reference.

B1S-G

Part No B1S-G
Manufacturer Comchip Technology
Catalog Bridge Rectifiers
Description BRIDGE RECT 1P 100V 800MA MBS
Datasheet
B1S-G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Comchip Technology
Series -
Package Tape & Reel
Product Status Obsolete
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 100 V
Current - Average Rectified (Io) 800 mA
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 800 mA
Current - Reverse Leakage @ Vr 5 µA @ 100 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case TO-269AA, 4-BESOP
Supplier Device Package MBS
Base Product Number B1S
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1367988-B1S-G
Ultra Librarian 3D Model Ultra Librarian B1S-G CAD Model

Description

The Comchip Technology B1S-G is a surface mount single-phase bridge rectifier.

  • Function: Bridge Rectifier
  • Current - Average Rectified (Io): 800mA
  • Voltage - Forward (Vf) (Max) @ If: 1.1V @ 800mA
  • Current - Reverse Leakage @ Vr: 5µA @ 100V
  • Mounting Type: Surface Mount
  • Standard: Standard
  • Lifecycle Status: Obsolete
  • Packaging: Tape & Reel (TR)
  • ECCN: EAR99
