Products specifications

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600V
Current - Average Rectified (Io) 800mA
Voltage - Forward (Vf) (Max) @ If 1.1V @ 800mA
Current - Reverse Leakage @ Vr 5μA @ 600V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package MBS
Win Source Part Number 1021642-B6S-G
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian B6S-G CAD Model

Description

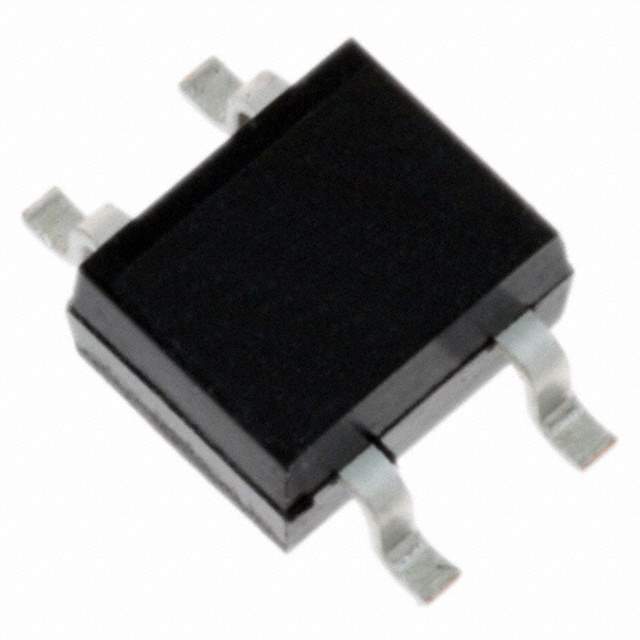

The B6S-G is a single-phase bridge rectifier manufactured by Comchip Technology. It is designed for converting alternating current (AC) to direct current (DC) in a variety of applications. This rectifier is known for its compact size, high reliability, and efficient performance.

Applications:

  • Power adapters
  • LED lighting
  • Small appliances
  • Battery chargers
  • General-purpose rectification

Features:

  • High surge current capability
  • Low forward voltage drop
  • Compact size
  • High reliability
  • RoHS compliant

Benefits:

  • Efficient AC to DC conversion
  • Reduced power loss
  • Stable DC output
  • Long service life
  • Easy integration

Additional Details:

The B6S-G is typically packaged in a GBU package. It features a maximum repetitive peak reverse voltage of 600V and a maximum average forward rectified current of 6A. It is designed to provide reliable performance in general rectification applications.

Technical Specifications:

  • Maximum Repetitive Peak Reverse Voltage (VRRM): 600V
  • Maximum Average Forward Rectified Current (IF(AV)): 6A
  • Peak Forward Surge Current (IFSM): 150A
  • Forward Voltage Drop (VF): Typically 1.0V
  • Operating Temperature Range: -55°C to +150°C
  • Package: GBU
