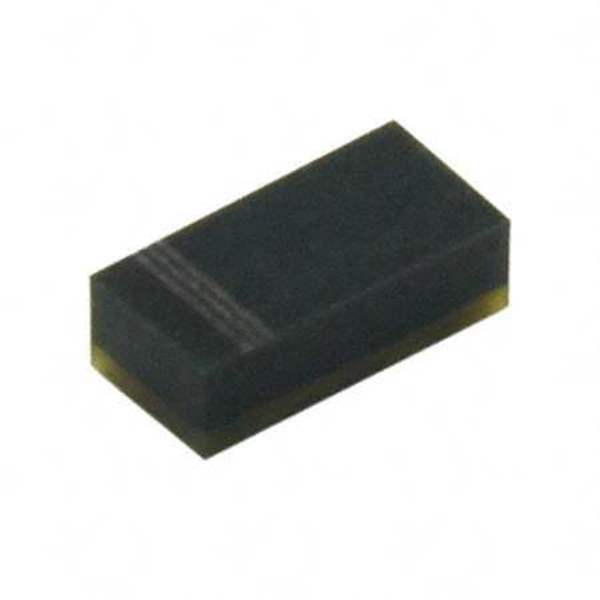

CDBF0130 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Comchip Technology
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 30 V
Current - Average Rectified (Io) 100mA
Voltage - Forward (Vf) (Max) @ If 440 mV @ 100 mA
Speed Small Signal =< 200mA (Io), Any Speed
Current - Reverse Leakage @ Vr 30 µA @ 30 V
Capacitance @ Vr, F 9pF @ 10V, 1MHz
Mounting Type Surface Mount
Package / Case 1005 (2512 Metric)
Supplier Device Package 1005/SOD-323F
Operating Temperature - Junction 125°C (Max)
Base Product Number CDBF0130
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 577791-CDBF0130
Ultra Librarian 3D Model Ultra Librarian CDBF0130 CAD Model

Description

The 577791-CDBF0130 is a small signal schottky rectifier diode from Comchip Technology.

  • Speed: Less than 200mA
  • Package: 1005 (2512 Metric)
  • Standard Package: 4,000 pieces
  • Technology: Schottky
  • Maximum Reverse Voltage: 30V
  • Average Rectified Current: 100mA
  • Forward Voltage: 440mV @ 100mA
  • Reverse Leakage Current: 30μA @ maximum reverse voltage
  • Capacitance: 9pF @ 10V and 1MHz
  • Maximum Operating Temperature: 125°C
  • Mounting: Surface mount
  • ECCN: EAR99
  • MSL Level: 1
  • REACH Status: Unaffected
  • HTSUS Code: 8541.10.0070
  • Status: Active
