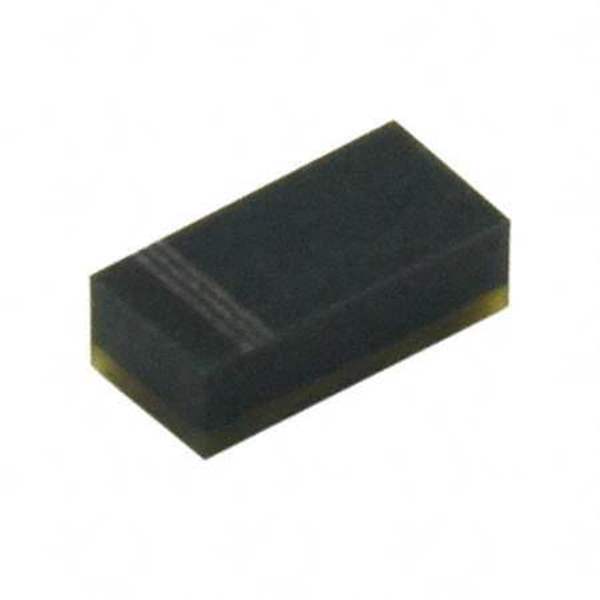

CDSF4148-HF Real Image
Same model may have multiple batches, images only for reference.

CDSF4148-HF

Part No CDSF4148-HF
Manufacturer Comchip Technology
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 75V 150MA 1005
Datasheet
CDSF4148-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Comchip Technology
Package Tape & Reel
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 75 V
Current - Average Rectified (Io) 150mA
Voltage - Forward (Vf) (Max) @ If 1 V @ 50 mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 4 ns
Current - Reverse Leakage @ Vr 2.5 µA @ 75 V
Capacitance @ Vr, F 4pF @ 0V, 1MHz
Mounting Type Surface Mount
Package / Case 1005 (2512 Metric)
Supplier Device Package 1005/SOD-323F
Operating Temperature - Junction 125°C (Max)
Base Product Number CDSF4148
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 578223-CDSF4148-HF
Ultra Librarian 3D Model Ultra Librarian CDSF4148-HF CAD Model

Description

The 578223-CDSF4148-HF is a standard rectifier diode designed for small signal applications and from Comchip Technology.

  • Maximum Reverse Voltage: 75V
  • Average Rectified Current: 150mA
  • Forward Voltage: 1V @ 50mA
  • Reverse Recovery Time: 4ns
  • Reverse Leakage Current: 2.5µA @ 75V
  • Capacitance: 4pF @ 0V and 1MHz
  • Operating Temperature: Up to 125°C
  • Mounting Type: Surface Mount
  • Package: 1005 (2512 Metric)
  • Manufacturer: Comchip Technology
  • Product Status: Active
