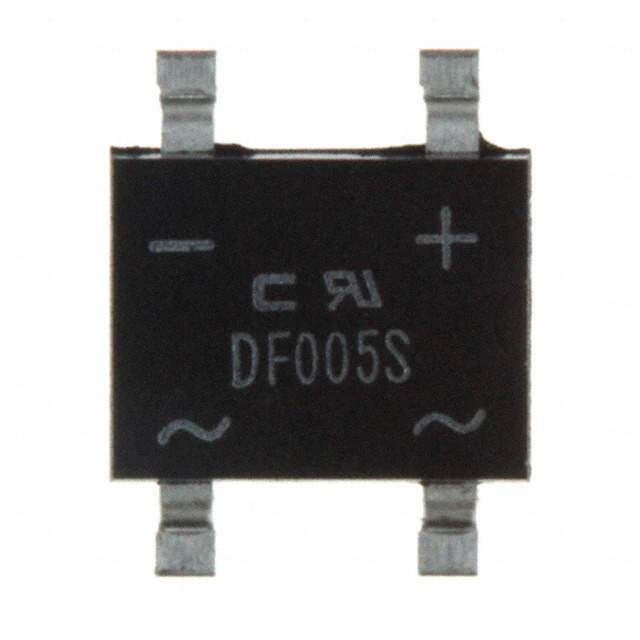

DF005S-G Comchip Technology
Same model may have multiple batches, images only for reference.

DF005S-G

Part No DF005S-G
Manufacturer Comchip Technology
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 50V 1A DFS
Datasheet
DF005S-G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Comchip Technology
Series -
Package Tube
Product Status Obsolete
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 50 V
Current - Average Rectified (Io) 1 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 1 A
Current - Reverse Leakage @ Vr 10 µA @ 50 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 4-SMD, Gull Wing
Supplier Device Package DFS
Base Product Number DF005
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1367808-DF005S-G
Ultra Librarian 3D Model Ultra Librarian DF005S-G CAD Model

Description

The DF005S-G is a bridge rectifier diode from Comchip Technology.

  • Mounting Type: Surface Mount
  • Package: 4-SMD, gull-wing
  • Diode Type: Standard
  • Forward Voltage: 1.1V (max) @ 1A
  • Average Rectified Current: 1A
  • Reverse Leakage Current: 10µA @ 50V
  • ECCN: EAR99
  • Product Status: Obsolete
