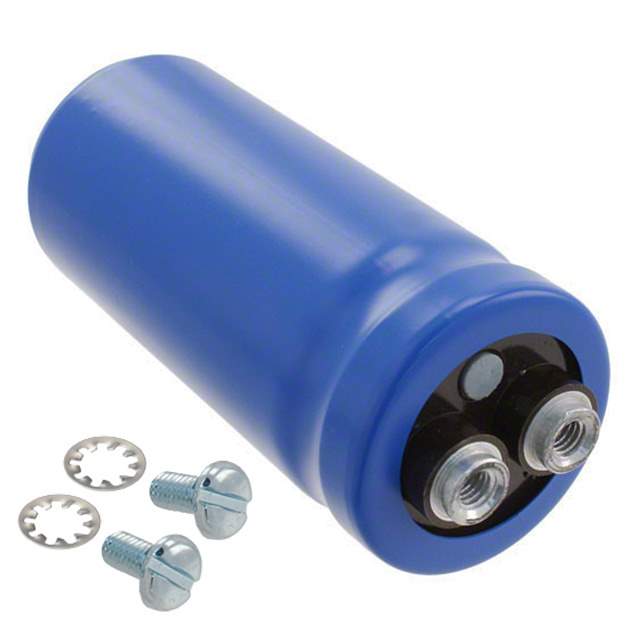

CGS632U075R5L Real Image
Same model may have multiple batches, images only for reference.

CGS632U075R5L

Part No CGS632U075R5L
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 6300UF 75V SCREW
Datasheet
CGS632U075R5L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Packaging Bulk
Status Active
Capacitance 6300μF
Tolerance -10%, +75%
Voltage Rating 75V
ESR 17 mOhm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C to 85°C
Polarization Polar
Applications General Purpose
Ripple Current - Low Frequency 9.8A @ 120Hz
Ripple Current - High Frequency 12.74A @ 10kHz
Height - Seated (Max) 5.625" (142.88mm)
Mounting Chassis Mount
Dimension Radial, Can - Screw Terminals
Win Source Part Number 1116886-CGS632U075R5L
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CGS632U075R5L CAD Model

Description

Cornell Dubilier Electronics (CDE) offers the CGS632U075R5L film capacitor with a capacitance of 6300μF and a voltage rating of 75V.

  • Capacitance: 6300μF
  • Voltage Rating: 75V
  • Polarity: Polarized
  • Package: Radial, Can-Screw Terminals
  • Application: General-Purpose
  • Height (Seated): 5.625" (142.88mm)
  • ESR: 17 mOhm @ 120Hz
  • Lifetime: 2000 Hrs @ 85°C
  • Ripple Current (Low Frequency): 9.8A @ 120Hz
  • Ripple Current (High Frequency): 12.74A @ 10kHz
  • Mounting: Chassis Mounted
  • Temperature Range: -40°C to 85°C
