Same model may have multiple batches, images only for reference.

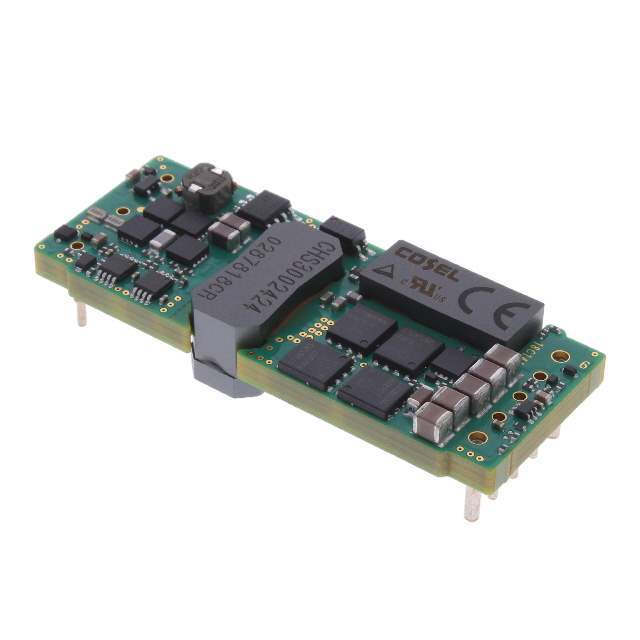

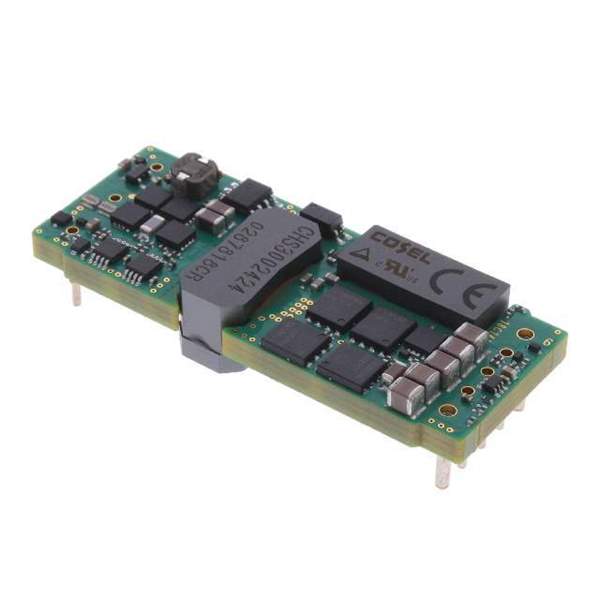

CHS3002424 Cosel USA, Inc.
Same model may have multiple batches, images only for reference.

CHS3002424

Part No CHS3002424
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 24V 252W
Datasheet
CHS3002424 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1310424-CHS3002424
Category Power Supplies - Board Mount -DC DC Converters
Mfr Cosel USA, Inc.
Packaging Box
Part Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 24V
Current - Output (Max) 10.5A
Ultra Librarian 3D Model Ultra Librarian CHS3002424 CAD Model

Description

  • High efficiency 96% (CHS7004812H)
  • Compact DC-DC Converter, "BRICK SIZE" which has been standard size for Telecommunication Market
  • High density
  • High reliability : not built-in aluminum and tantalum electrolytic capacitor
  • Built-in overcurrent, overvoltage and thermal protection circuits
  • Built-in remote ON/OFF
