Same model may have multiple batches, images only for reference.

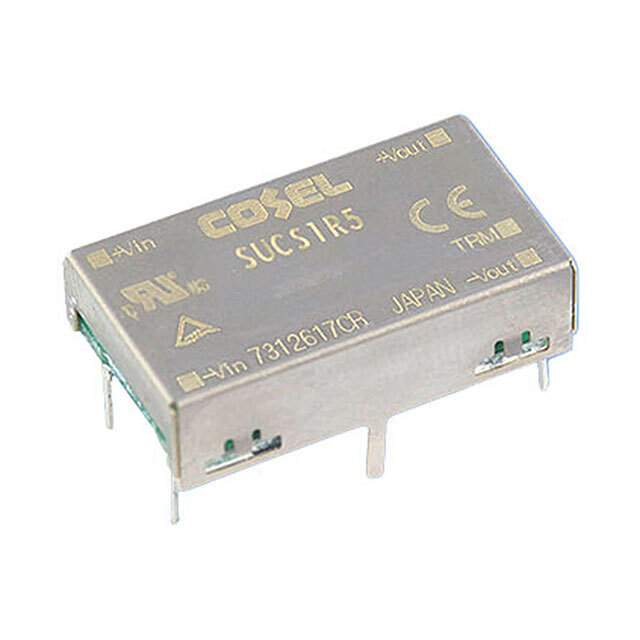

SUCS1R52412C Real Image
Same model may have multiple batches, images only for reference.

SUCS1R52412C

Part No SUCS1R52412C
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V / Module DC-DC 24VIN 1-OUT 12V 0.13A 1.56W 5-Pin DIP Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Cosel USA, Inc.
Series SUCS
Type Isolated Module
Number of Outputs 1
Input Voltage MIN 18V
Voltage Input MAX 36V
Voltage - Output 1 12V
Current - Output (Maximum) 130mA
Voltage - Isolation 500V
Applications ITE (Commercial)
Features OCP
Operating Temperature Range -40°C ~ 85°C (With Derating)
Efficiency 75%
Mounting Style Through Hole
Package 5-DIP Module
Dimension 0.88" L x 0.50" W x 0.28" H (22.4mm x 12.7mm x 7.0mm)
Win Source Part Number 795833-SUCS1R52412C
Popularity Medium
Supply and Demand Status Limited
Family Name SUCS1R5
Introduction Date July 11, 2006
Country of Origin Japan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian SUCS1R52412C CAD Model

Description

The Cosel USA, Inc. 795833-SUCS1R52412C is a 5-DIP module isolated module type power supply that belongs to the SUCS series.

  • Applications: ITE (Commercial)
  • Popularity: Medium
  • Temperature Range: -40°C to 85°C (with derating)
  • Features: OCP
  • Input Voltage Range: 18V to 36V
  • Efficiency: 75%
