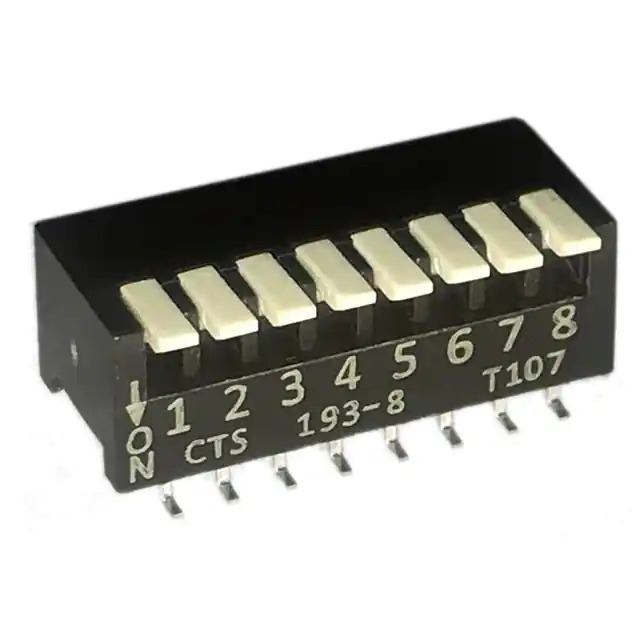

193-8MS CTS Electrocomponents
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr CTS Electrocomponents
Series 193
Package Tube
Product Status Active
Circuit SPST
Number of Positions 8
Current Rating (Amps) 50mA
Voltage Rating 24VDC
Actuator Type Piano
Actuator Level Raised
Contact Material -
Contact Finish Gold
Height Above Board 0.359" (9.12mm)
Mounting Type Surface Mount, Right Angle
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable No
Features Epoxy Sealed Terminals
Temperature Range - Operating -40°C ~ 85°C
Body Material Plastic
Length 0.886" (22.50mm)
Mechanical Life -
Electrical Life 7,000 Cycles
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1376412-193-8MS
Ultra Librarian 3D Model Ultra Librarian 193-8MS CAD Model

Description

The 1376412-193-8MS is a surface mount DIP switch from CTS Electrocomponents.

  • Series: 193
  • Positions: 8
  • Current Rating: 50mA
  • Voltage Rating (DC): 24VDC
  • Actuator Type: Piano
  • Termination Style: Gull Wing
  • Body Material: Plastic
  • Contact Finish: Gold
  • Mounting: Surface Mount, Right Angle
  • Height Above Board: 0.359" (9.12mm)
  • Sealed: Epoxy Sealed
  • Washable: No
  • Electrical Life: 7,000 cycles
  • Product Status: Active
