Products specifications

Categories Switches
Manufacturer CTS Electrocomponents
Series 218
Packaging Tube
Circuit SPST
Number of Positions 2
Current Rating 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.104" (2.65mm)
Mounting SMD
Termination Style Gull Wing
Pitch 0.050" (1.27mm), Half
Washable Yes
Features Epoxy Sealed Terminals, Tape Seal
Length 0.146" (3.71mm)
Operating Temperature Range -55°C ~ 85°C
Electrical Life 1,000 Cycles
Win Source Part Number 761809-218-2LPST
Popularity Medium
Supply and Demand Status Limited
Family Name 218
Introduction Date August 07, 2006
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 218-2LPST CAD Model

Description

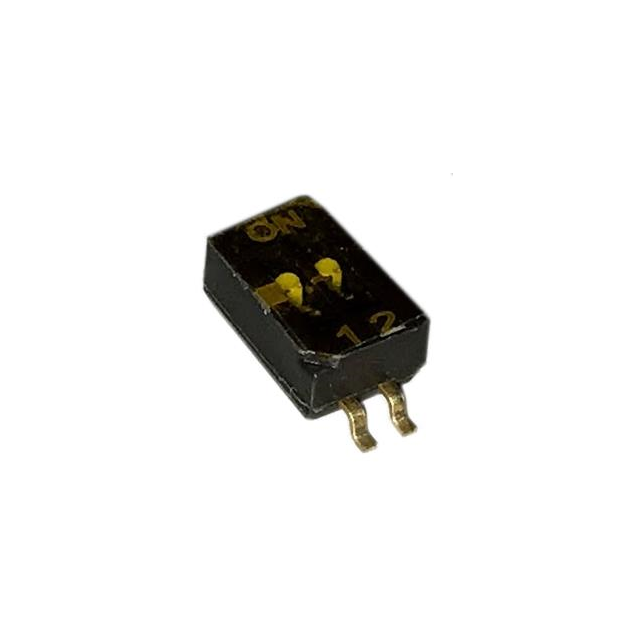

The CTS Electrocomponents 761809-218-2LPST is an SPST slide switch.

  • Voltage Rating: 24VDC
  • Current Rating: 25mA
  • Pitch: 0.050" (1.27mm), Half
  • Termination: Gull Wing
  • Features: Epoxy Sealed Terminals, Tape Seal
  • Height Above Board: 0.104" (2.65mm)
  • Length: 0.146" (3.71mm)
  • Circuit: SPST
  • Actuator Type: Slide (Standard)
  • Electrical Life: 1,000 cycles
  • Actuator Level: Flush, Recessed
  • Mounting: SMD
  • Category: Switches
  • Temperature Range: -55°C to 85°C
  • Packaging: Tube
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Package Quantity: 2
