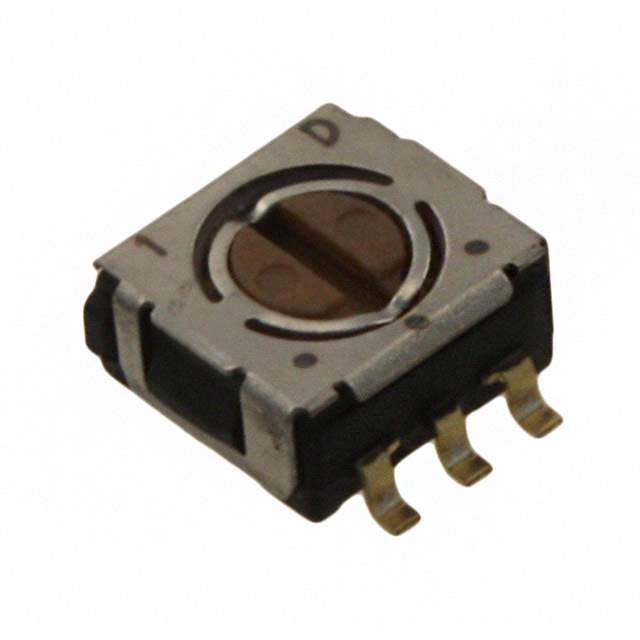

CS-4-13NTB

Part No CS-4-13NTB
Manufacturer Copal Electronics Inc.
Catalog DIP Switches
Description SWITCH ROTARY DIP SP3T 100MA 16V
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Copal Electronics Inc.
Packaging Reel - TR
Status Active
Circuit SP3T
Number of Positions 3
Current Rating 100mA
Voltage Rating 16VDC
Actuator Type Rotary for Tool
Actuator Level Flush, Recessed
Contact Finish Gold
Height Above Board 0.091" (2.30mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.051" (1.30mm)
Washable Yes
Body Material Epoxy
Length 0.197" (5.00mm)
Temperature Range - Operating -25°C to 70°C
Electrical Life 200 Cycles
Win Source Part Number 050464-CS-4-13NTB
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CS-4-13NTB CAD Model

Description

CS-4-13NTB

The CS-4-13NTB offers an impressive blend of reliability and flexibility, ideal for projects that demand adaptability and consistent performance.

  • Renewable Energy Systems
  • Sensor Networks
  • IoT Devices

Features and Benefits

  • Effortless integration with existing setups
  • Stable and consistent performance across varied conditions
  • Eco-friendly design supporting sustainable practices
  • User-friendly features reducing learning curve and adoption time

With the CS-4-13NTB, developers and engineers can confidently tackle any challenge, knowing they have a reliable component at their disposal.
