Products specifications

Manufacturer CTS Electrocomponents
Packaging Reel
Circuit SPST
Number of Positions 4
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.104" (2.65mm)
Mounting Style SMD
Termination Style Gull Wing
Pitch 0.050" (1.27mm), Half
Washable Yes
Features Epoxy Sealed Terminals, Tape Seal
Temperature Range - Operating -55°C ~ 85°C
Length 0.246" (6.25mm)
Electrical Life 1,000 Cycles
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 814224-218-4LPSTRF

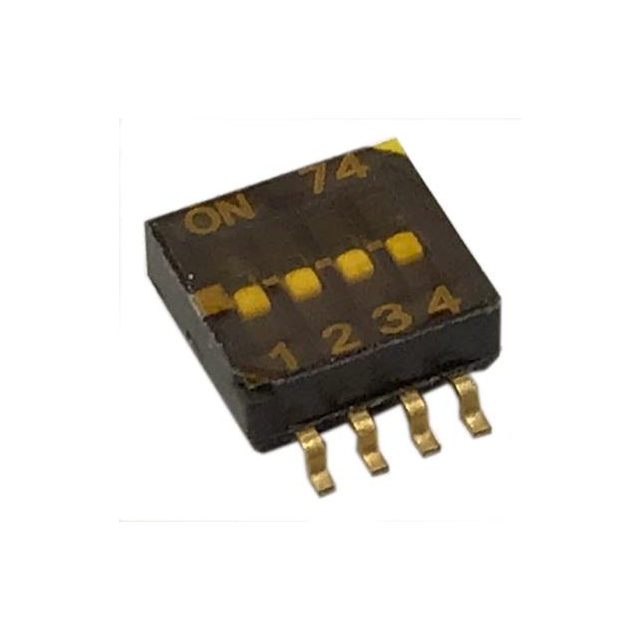

Ultra Librarian 3D Model Ultra Librarian 218-4LPSTRF CAD Model

Description

The CTS Electrocomponents 218-4LPSTRF is a 4-position DIP (Dual In-line Package) switch designed for circuit configuration and programming on printed circuit boards (PCBs). This switch allows users to easily set or change electrical circuits by manually toggling the individual switches. Its compact size and ease of use make it a popular choice for various electronic applications.

Applications:

  • Circuit configuration on PCBs
  • Address setting for electronic devices
  • Programming electronic systems
  • Selecting different operating modes
  • Calibration settings

Features:

  • 4-position DIP switch
  • Through-hole mounting
  • Standard DIP package
  • Easy to use toggle switches
  • Reliable electrical contacts

Benefits:

  • Simplifies circuit configuration and programming
  • Allows for easy adjustments and modifications
  • Provides a cost-effective solution for circuit customization
  • Ensures reliable electrical connections
  • Suitable for a wide range of electronic applications

Technical Specifications (Typical):

  • Number of Positions: 4
  • Contact Rating: 25mA at 24VDC
  • Contact Resistance: 50 mΩ (milliohms)
  • Insulation Resistance: 100 MΩ (megaohms)
  • Operating Temperature: -20°C to +85°C
  • Mounting Type: Through-hole

The CTS Electrocomponents 218-4LPSTRF DIP switch is constructed with high-quality materials to ensure durability and long-term reliability. Its through-hole mounting design provides a secure connection to the PCB. The toggle switches are designed for easy manual operation, allowing users to quickly and easily change the circuit configuration. The switch is commonly used in applications where infrequent changes to circuit settings are required. The DIP switch’s compact size allows it to be easily integrated into densely populated PCBs. It is also designed to withstand typical reflow soldering processes. This DIP switch provides a convenient and reliable solution for circuit customization and programming in various electronic devices.
