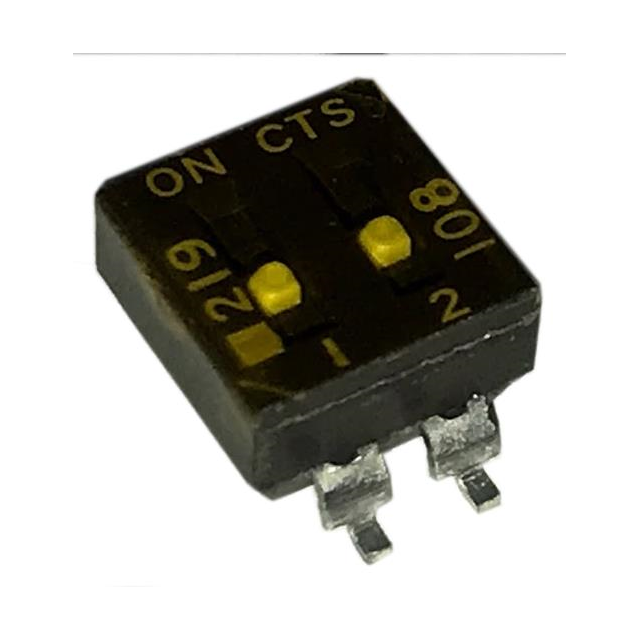

219-2LPSTRF Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Manufacturer CTS Electrocomponents
Series 219
Packaging Reel package
Circuit SPST
Number of Positions 2
Current Rating 100mA
Voltage Rating 20VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.160" (4.06mm)
Mounting SMD
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Epoxy Sealed Terminals, Tape Seal
Length 0.258" (6.55mm)
Operating Temperature Range -55°C ~ 85°C
Electrical Life 2,000 Cycles
Win Source Part Number 761812-219-2LPSTRF
Popularity Medium
Supply and Demand Status Balance
Family Name 219
Introduction Date August 13, 2006
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 219-2LPSTRF CAD Model

Description

The CTS Electrocomponents 761812-219-2LPSTRF is an SPST slide switch.

  • Voltage Rating: 20VDC
  • Current Rating: 100mA
  • Pitch: 0.100" (2.54mm), Full
  • Termination: Gull Wing
  • Features: Epoxy Sealed Terminals, Tape Seal
  • Height Above Board: 0.160" (4.06mm)
  • Length: 0.258" (6.55mm)
  • Circuit: SPST
  • Actuator Type: Slide (Standard)
  • Electrical Life: 2,000 cycles
  • Actuator Level: Flush, Recessed
  • Mounting: SMD
  • Category: Switches
  • Temperature Range: -55°C to 85°C
  • Packaging: Reel
  • Popularity: Medium
  • Supply and Demand Status: Balanced
  • Package Quantity: 1
