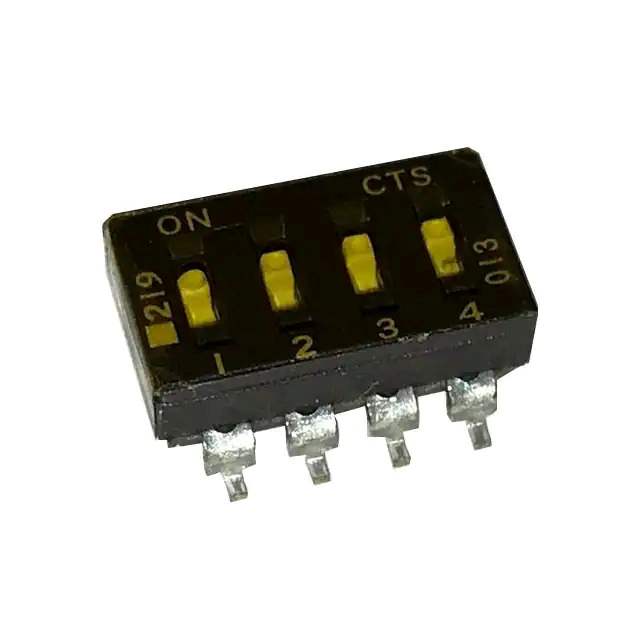

219-4LPSTR Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr CTS Electrocomponents
Series 219
Package Tape & Reel
Product Status Active
Circuit SPST
Number of Positions 4
Current Rating (Amps) 100mA
Voltage Rating 20VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.160" (4.06mm)
Mounting Type Surface Mount
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Epoxy Sealed Terminals, Tape Seal
Temperature Range - Operating -55°C ~ 85°C
Length 0.458" (11.63mm)
Electrical Life 2,000 Cycles
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
California Prop 65 Warning Information
Win Source Part Number 854589-219-4LPSTR
Ultra Librarian 3D Model Ultra Librarian 219-4LPSTR CAD Model

Description

The 854589-219-4LPSTR is a 4-position DIP switch from the 219 series by CTS Electrocomponents.

  • Pitch: 0.100" (2.54mm)
  • Termination Style: Gull wing
  • Contact Finish: Gold
  • Packaging: Tape and reel
  • Voltage Rating: 20VDC
  • Current Rating: 100mA
  • Height Above Board: 0.160" (4.06mm)
  • Length: 0.458" (11.63mm)
  • Actuator Level: Flush, recessed
  • Washable: Yes
  • Mounting: Surface mountable
  • Operating Temperature Range: -55°C to 85°C
  • Status: Active
  • Category: Switches
