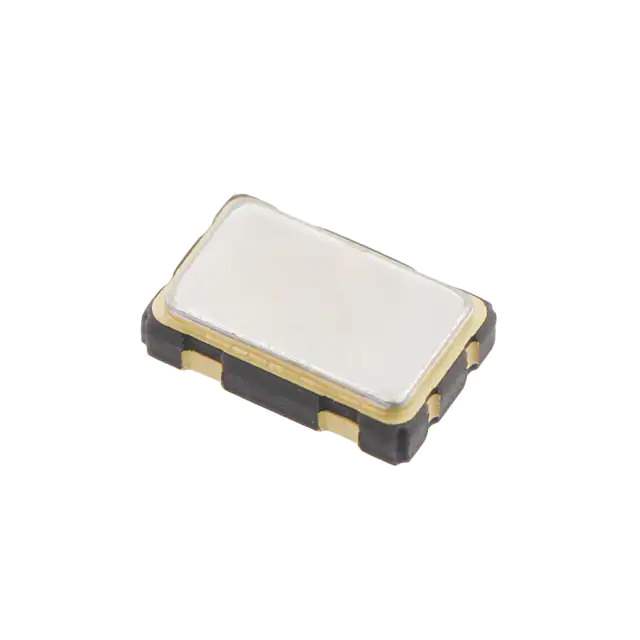

636L3C024M57600 Real Image 636L3C024M57600 Real Image
Same model may have multiple batches, images only for reference.
636L3C024M57600 Real Image 636L3C024M57600 Real Image
636L3C024M57600 Real Image 636L3C024M57600 Real Image
Same model may have multiple batches, images only for reference.

636L3C024M57600

Part No 636L3C024M57600
Manufacturer CTS-Frequency Controls
Catalog Oscillators
Description XTAL OSC XO 24.5760MHZ HCMOS TTL / 24.576 MHz XO (Standard) HCMOS, TTL Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Datasheet
636L3C024M57600 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr CTS-Frequency Controls
Series 636
Package Tape & Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 24.576 MHz
Function Enable/Disable
Output HCMOS, TTL
Voltage - Supply 3.3V
Frequency Stability ±50ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 16mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.051" (1.30mm)
Current - Supply (Disable) (Max) 10µA
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
California Prop 65 Warning Information
Win Source Part Number 1338871-636L3C024M57600
Ultra Librarian 3D Model Ultra Librarian 636L3C024M57600 CAD Model

Description

The 636 series XO oscillator from CTS-Frequency Controls is a high-quality electronic component that provides accurate frequency stability of ±50ppm.

  • Frequency Stability: ±50ppm
  • Frequency: 24.576 MHz
  • Output: HCMOS and TTL
  • Package: Tape and Reel
  • Mounting Type: Surface Mountable
  • Current Supply: 16mA (Max)
  • Voltage Supply: 3.3V
  • Temperature Range: -20°C to 70°C
