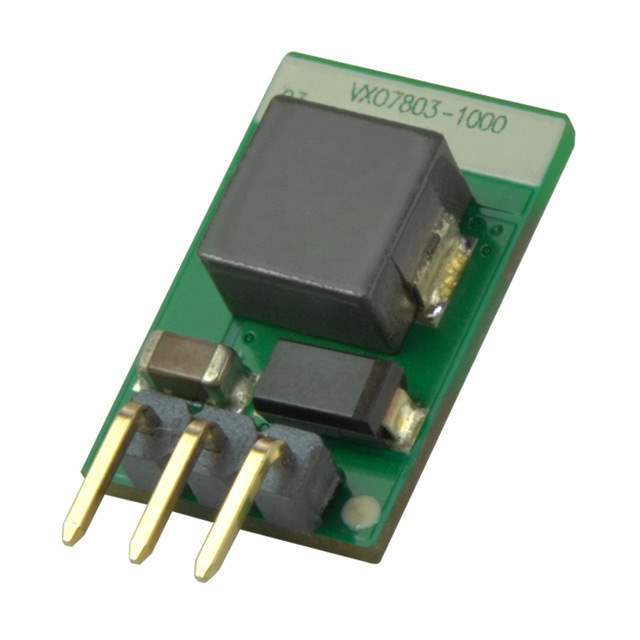

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1201976-VXO7805-1000
Manufacturer CUI Inc.
Category Power Supplies - Board Mount DC DC Converters
Series VXO78-1000
Package Tray
Product Status Active
Type Linear Regulator Replacement
Number of Outputs 1
Applications ITE (Commercial)
Operating Temperature -40°C ~ 85°C (With Derating)
Efficiency 93%
Ultra Librarian 3D Model Ultra Librarian VXO7805-1000 CAD Model

Description

The CUI Inc. Id 1201976 is a board mount DC-DC converter from the VXO78-1000 series.

  • Description: Designed as a linear regulator replacement
  • Application: ITE (Commercial)
  • Output: Single
  • Efficiency: 93%
  • Operating Temperature: -40°C to 85°C (with derating)
  • Package: Tray
  • Product Status: Active
