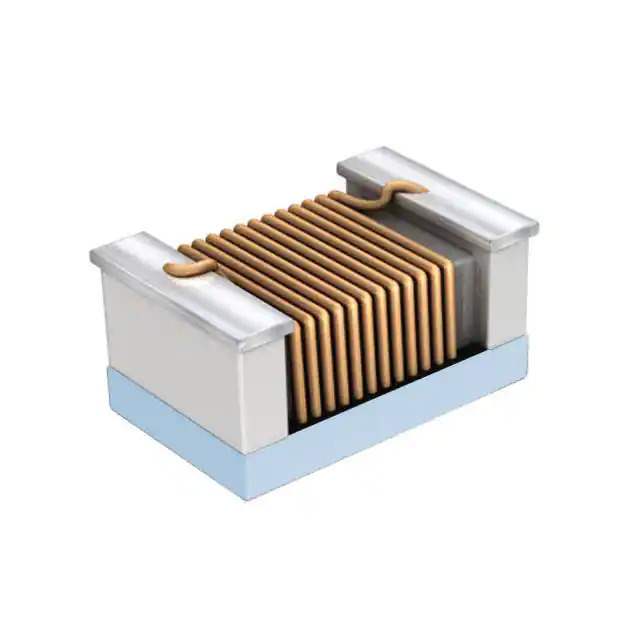

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Delta Electronics
Series 0402HS
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ceramic
Inductance 12 nH
Tolerance ±5%
Current Rating (Amps) 640 mA
Shielding Unshielded
DC Resistance (DCR) 120mOhm
Q @ Freq 24 @ 250MHz
Frequency - Self Resonant 3.6GHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 250 MHz
Mounting Type Surface Mount
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402
Size / Dimension 0.050" L x 0.030" W (1.27mm x 0.76mm)
Height - Seated (Max) 0.024" (0.60mm)
Base Product Number 0402HS
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 743405-0402HS-120EJTS
Ultra Librarian 3D Model Ultra Librarian 0402HS-120EJTS CAD Model

Description

The 743405-0402HS-120EJTS is a fixed inductor from Delta Electronics.

  • Type: Fixed Inductor
  • Design: Wirewound, Drum Core
  • Inductance: 12nH
  • Inductance Tolerance: ±5%
  • Size: 0.050" L x 0.030" W (1.27mm x 0.76mm)
  • Height: 0.024" (0.60mm)
  • Shielding: Unshielded
  • Core Material: Ceramic
  • DC Resistance: 120mOhm
  • Current Rating: 640mA
  • Operating Temperature: -40°C to 125°C
  • Mounting: Surface Mount
  • Package: Tape & Reel
  • Standard Package: 4,000 pcs
