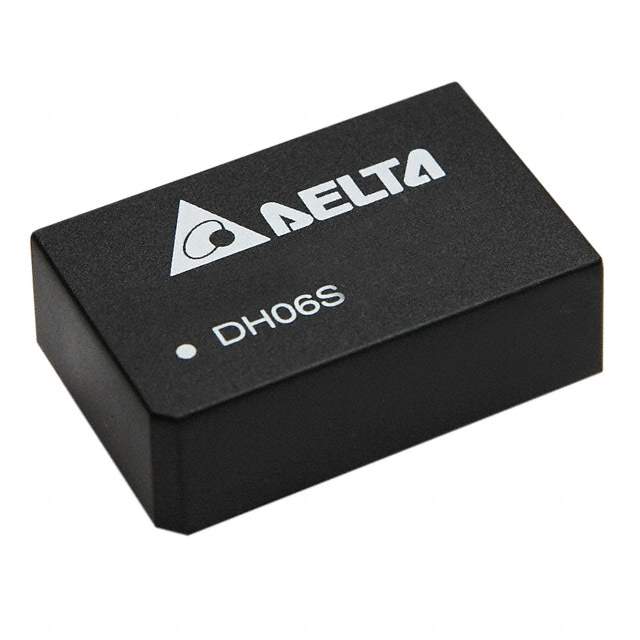

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Delta Electronics
Packaging Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 15V
Current - Output (Max) 400mA
Power (Watts) 6 W
Voltage - Isolation 1.5 kV
Applications Medical
Features OCP, SCP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 82%
Mounting Through Hole
Case / Package 24-DIP Module, 8 Leads
Size / Dimension 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Base Product Number DH06S
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 941-1534
Standard Package 10
Win Source Part Number 1335137-DH06S1215A
Ultra Librarian 3D Model Ultra Librarian DH06S1215A CAD Model

Description

The Delta Electronics 1335137-DH06S1215A is a power supply module that is ideal for medical applications.

  • Application: Medical applications
  • Power Output: 6W
  • Features: OCP, SCP, and UVLO
  • Voltage Isolation: 1.5kV
  • Maximum Output Current: 400mA
  • Input Voltage Range: 9V and 18V
  • Output Voltage: 15V
  • Efficiency: 82%
  • Operating Temperature: -40°C to 85°C
  • Package: 24-DIP module, 8 leads case/package
  • Mounting: Through holes
  • Base Product Number: DH06S series
  • ROHS3 Compliance: Yes
