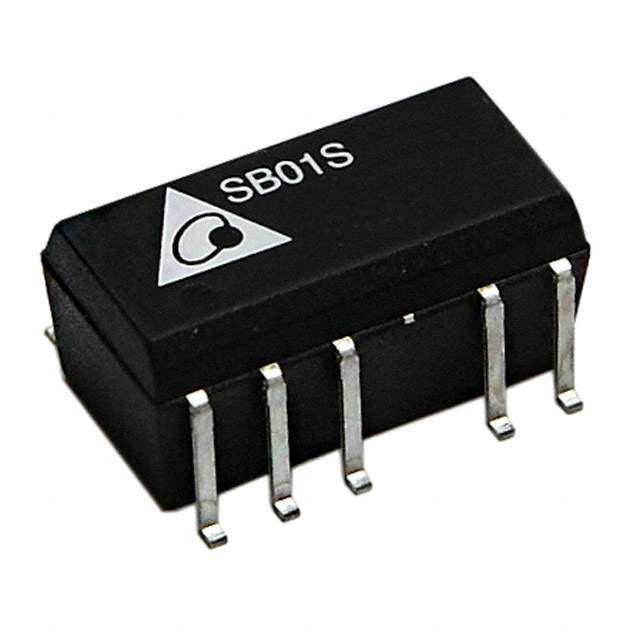

SB01D0505A

Get a Quote

Part No	SB01D0505A
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-5V 1W / Isolated Module DC DC Converter 2 Output 5V -5V 100mA, 100mA 4.5V - 5.5V Input
Datasheet	SB01D0505A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Delta Electronics
Series	SB01S/D (2W)
Package	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	5V
Voltage - Output 2	-5V
Current - Output (Max)	100mA, 100mA
Power (Watts)	1 W
Voltage - Isolation	3 kV
Applications	Medical
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	72%
Mounting	SMD (SMT)
Package / Case	12-SMD Module, 10 Leads
Dimension	0.60" L x 0.42" W x 0.28" H (15.2mm x 10.7mm x 7.0mm)
Base Product Number	SB01D
Other Names	941-1271
Standard Package	10
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1237481-SB01D0505A
Ultra Librarian 3D Model	Ultra Librarian SB01D0505A CAD Model

Alternative Products

Description

The SB01D0505A is a type of isolated module from Delta Electronics.

Series: SB01S/D (2W)
Package: tube package
Standard Package: 10 units
Power Rating: 1 W
Outputs: two outputs
Maximum Current Output: 100mA
Input Voltage Range: between 4.5V and 5.5V
Output Voltage for output 1: 5V
Output Voltage for output 2: -5V
Efficiency: 72%
Features: SCP
Designed for: medical applications
Mounting: SMD (SMT) technology
Package/Case: 12-SMD Module, 10 Leads
Operating Temperature Range: -40°C to 85°C
Isolation Voltage: 3 kV
Win Source Part Number: 1237481-SB01D0505A
