Product Overview: AP1604AWG-7 from Diodes Incorporated

The AP1604AWG-7 is a high-performance PWM (Pulse Width Modulation) controller designed by Diodes Incorporated, a leading manufacturer in the semiconductor market. This device is specifically engineered to cater to a wide range of power conversion and management applications, providing an efficient solution for DC-DC converters, power supplies, and other related electronic systems.

The AP1604AWG-7 boasts an impressive array of features that make it a versatile and reliable component for designers. Its ability to drive a N-channel MOSFET ensures high efficiency and better thermal performance, which is essential for maintaining the longevity and reliability of the electronic systems it is used in. The controller operates at a fixed frequency of 150kHz, which provides a good balance between efficiency and component size, allowing for the use of smaller inductors and capacitors, thus reducing the overall footprint of the power supply design.

One of the key attributes of the AP1604AWG-7 is its wide input voltage range, accommodating from 3.6V to 40V. This feature enables the device to be used in a variety of applications, from low-voltage portable devices to higher-voltage automotive and industrial equipment. Additionally, its output voltage is adjustable, giving designers the flexibility to set the voltage according to the specific needs of their application.

Protection features are an integral part of the AP1604AWG-7, including over-current protection, under-voltage lockout, and thermal shutdown. These safeguards help prevent damage to the device and the system it is part of, under abnormal operating conditions. The thermal shutdown feature, in particular, is crucial for preventing overheating, which is a common cause of failure in electronic components.

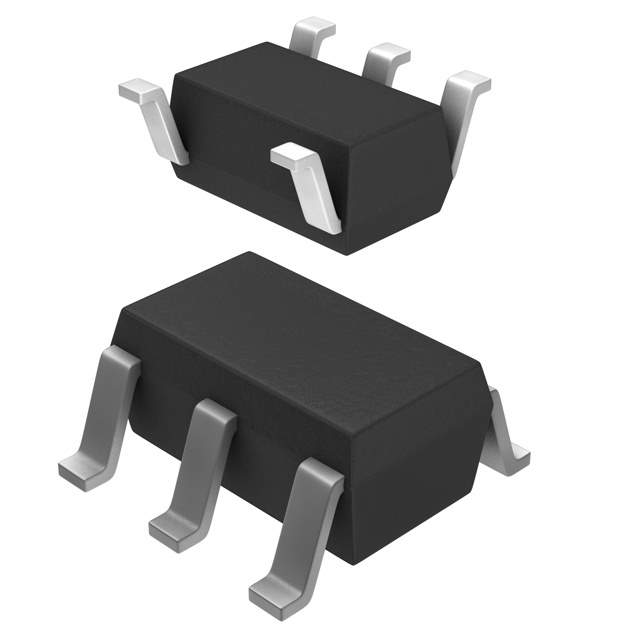

The AP1604AWG-7 comes in a small SOT-25 package, making it suitable for space-constrained applications. Its small size, combined with its high efficiency and robust protection features, make it an excellent choice for engineers looking to create compact, reliable, and high-performing power management systems.

In summary, the AP1604AWG-7 PWM controller from Diodes Incorporated is a top-tier component that offers a blend of efficiency, versatility, and protection, making it an ideal choice for a wide array of power management applications.
