Overview of PI7C9X118SLFDE from Diodes Incorporated

The PI7C9X118SLFDE is a high-performance, PCIe packet switch offered by Diodes Incorporated, a leading global manufacturer and supplier of high-quality application-specific standard products within the broad discrete, logic, analog, and mixed-signal semiconductor markets. This product is designed to meet the needs of the expanding markets for computing, communications, and consumer electronics.

Key Features

• PCI Express Base Specification Compliance: The device complies with PCI Express Base Specification Revision 3.0, ensuring compatibility with the latest generation of PCIe devices.
• Ports: It features 8 downstream ports for flexible interconnection with multiple devices, enhancing system expandability and integration.
• Packet Switching: The PI7C9X118SLFDE performs packet switching with low latency, which is crucial for high-speed data transfer applications.
• Power Management: Advanced power management capabilities are integrated into the device, supporting lower power consumption and extended battery life for portable solutions.
• Quality of Service (QoS): It includes QoS features that enable prioritization of critical data traffic, ensuring efficient bandwidth allocation for different types of data streams.

Applications

The PI7C9X118SLFDE is versatile and can be used in various applications, including:

• Data center and server applications
• Embedded systems
• Networking equipment
• Consumer electronics
• Storage systems

Technical Specifications

The technical specifications of the PI7C9X118SLFDE include:

• Operating Temperature Range: -40°C to 85°C

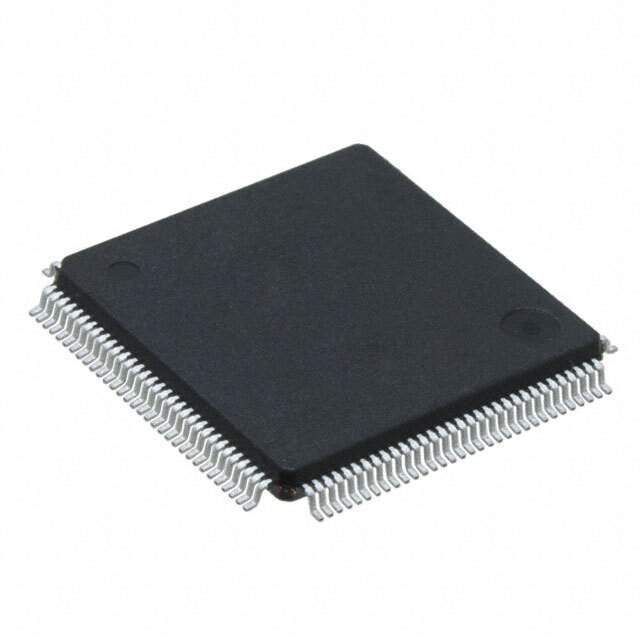

• Package: 176-pin HFCQFN
• PCIe 3.0 compliant with support for up to 8 GT/s
• Support for Access Control Services (ACS)
• End-to-End Data Protection

Conclusion

The PI7C9X118SLFDE from Diodes Incorporated is an ideal solution for designers looking to enhance system performance with a high-speed, flexible, and power-efficient PCIe switch. Its advanced features and compliance with the latest PCIe specifications make it suitable for a wide range of high-performance applications.
