The TPD12S015YFFR is a highly-integrated device designed by Texas Instruments to serve as the ultimate HDMI companion chip for portable electronics such as smartphones, tablets, digital cameras, and other audio-visual devices that require high-definition multimedia interface capabilities. This advanced chip is engineered to provide a comprehensive solution for HDMI interface protection and signal conditioning.

Key Features

• Integrated HDMI Interface Protection: The TPD12S015YFFR offers robust electrostatic discharge (ESD) protection for HDMI high-speed interfaces, ensuring the longevity and reliability of consumer electronics that utilize HDMI connectivity.
• High-Resolution Support: This chip supports the full range of HDMI 1.4 data rates, making it capable of handling high-definition video and audio signals, including 4K resolution and 3D video.
• Low Power Consumption: Designed with power efficiency in mind, the TPD12S015YFFR operates with minimal power draw, which is critical for battery-powered devices.
• Audio Return Channel (ARC): The inclusion of an ARC feature allows for the reduction of cable requirements, simplifying the user experience by enabling a single HDMI cable to carry both audio and video signals.

Integration Benefits

The TPD12S015YFFR integrates multiple functions that typically require separate components, including a level shifter, a de-bounce circuit, and a backdrive protection circuit. This integration helps to reduce board space, system complexity, and overall cost of the end product.

Package and Availability

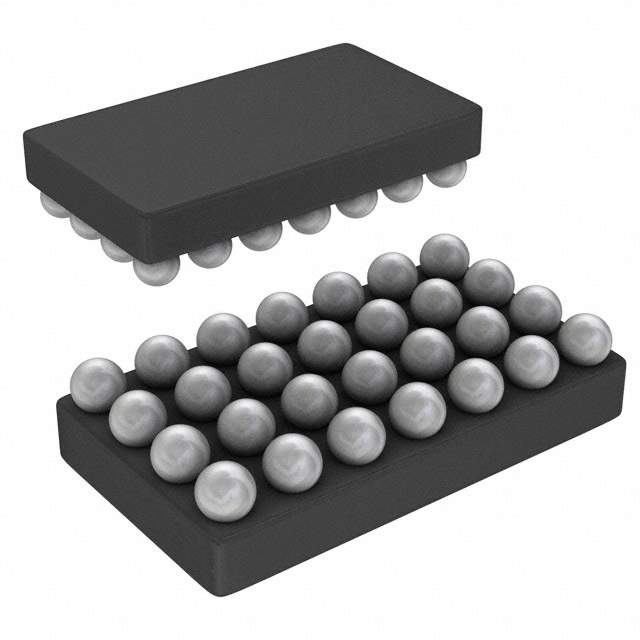

Encased in a space-saving 40-DSBGA package, the TPD12S015YFFR is designed for compact applications where space is at a premium. Texas Instruments provides this chip in tape and reel packaging, facilitating easy integration into manufacturing processes for high-volume production.

Applications

With its versatile feature set, the TPD12S015YFFR is suitable for a wide array of applications. It is particularly well-suited for portable devices that require a reliable and high-quality HDMI interface. This includes but is not limited to smartphones, tablets, digital cameras, video camcorders, and portable media players.

Conclusion

The TPD12S015YFFR from Texas Instruments represents a state-of-the-art solution for HDMI signal management and protection, offering manufacturers a compact, power-efficient, and cost-effective option for enhancing their multimedia products with high-definition capabilities.
