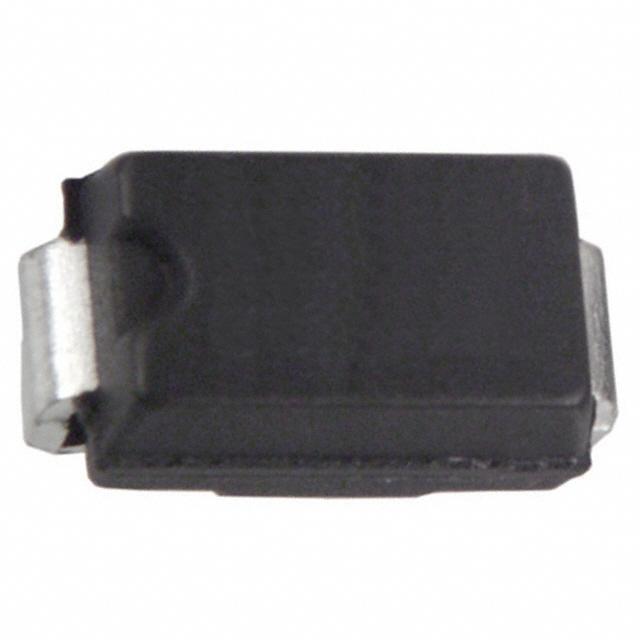

The RS1B-13-F is a high-quality rectifier diode from Diodes Incorporated, designed to offer efficient and reliable performance for a variety of electronic applications. This robust semiconductor device is part of the RS1 series and is packaged in a compact SMA (DO-214AC) package, making it suitable for surface mount technology (SMT) and ideal for space-constrained applications.

Key Features

• High Current Capability: The RS1B-13-F is capable of conducting up to 1 ampere of average rectified current (Io), allowing it to handle moderate power requirements with ease.
• Low Forward Voltage Drop: This diode features a low forward voltage drop (Vf), which enhances system efficiency by minimizing power loss during the conduction phase.
• Fast Switching Speed: With its fast reverse recovery time (trr), the RS1B-13-F is suitable for high-frequency applications, contributing to reduced switching losses and improved overall performance.
• High Surge Current Capability: It can withstand high surge currents, ensuring durability and reliability in applications subject to transient overcurrent conditions.
• Robust Thermal Performance: The SMA package enhances thermal performance, allowing the diode to operate effectively over a wide temperature range.

Applications

The RS1B-13-F is versatile and can be used in a range of applications, such as:

• Power supply units
• Automotive systems
• Consumer electronics
• Telecommunications
• Lighting systems

Specifications

Parameter Value Average Rectified Current (Io) 1 A Forward Voltage Drop (Vf) 1.1 V (max) @ 1 A Reverse Recovery Time (trr) Fast Operating Temperature Range -55°C to +150°C Package SMA (DO-214AC)

The RS1B-13-F from Diodes Incorporated represents a reliable solution for designers seeking a rectifier diode that balances performance with compact form factor. Its robust design and electrical characteristics make it a go-to choice for a wide array of electronic applications.
