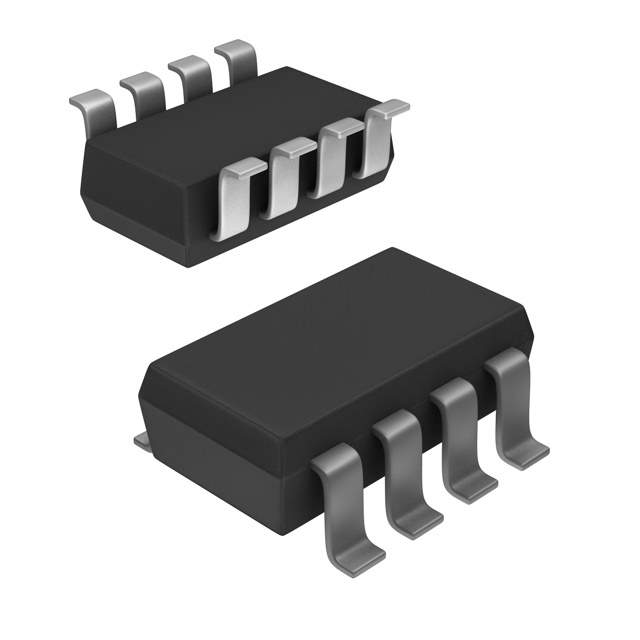

Product Overview: ZXMS6004DT8TA

The ZXMS6004DT8TA is a high-performance, self-protected Low Side Intelligent Power Switch (LIPS) designed and manufactured by Diodes Incorporated, a leading global provider of discrete, logic, analog, and mixed-signal semiconductors. This advanced power switch is tailored for automotive and industrial applications where a robust and efficient power switching solution is required.

Key Features

• Integrated Protection: The ZXMS6004DT8TA comes with built-in over-current, over-temperature, ESD protection, and under-voltage lockout features. These integrated protections enhance system reliability by safeguarding the switch and the load from various electrical hazards.
• High-Side Drive: Designed as a high-side switch, it allows for easy control of the load with a simple logic signal without the need for complex gate drive circuitry.
• Low RDS(on): The device boasts a low on-state resistance, minimizing power loss and heat generation during operation, which is crucial for maintaining energy efficiency in power management applications.
• Logic Level Input: It can be driven directly from microcontrollers or other logic devices, thanks to its logic level input compatibility. This simplifies circuit design and reduces component count.
• Diagnostic Feedback: The switch provides diagnostic feedback via a status flag output, which can be used to monitor the health and status of the switch, thereby enabling fault detection and system management.
• Small Package: The ZXMS6004DT8TA is available in a small surface-mount package, which is ideal for space-constrained applications.

Applications

The ZXMS6004DT8TA is suitable for a wide range of applications, including but not limited to:

• Automotive systems such as motor control, lighting, and power distribution.
• Industrial automation for controlling actuators, solenoids, and valves.
• Intelligent power management in embedded systems.
• Consumer electronics where power efficiency and protection are critical.

Technical Specifications

With a continuous current rating of up to 6.5A and an operating voltage range from 2.7V to 5.5V, the ZXMS6004DT8TA is a versatile component that meets the requirements of various low-voltage applications. Its thermal shutdown feature ensures the device operates within safe temperature limits, further enhancing its suitability for high-reliability systems.

Conclusion

Diodes Incorporated's ZXMS6004DT8TA is a compact, intelligent power switch that combines performance, protection, and convenience. Its range of features makes it an excellent choice for designers looking to improve system efficiency, reliability, and longevity.
