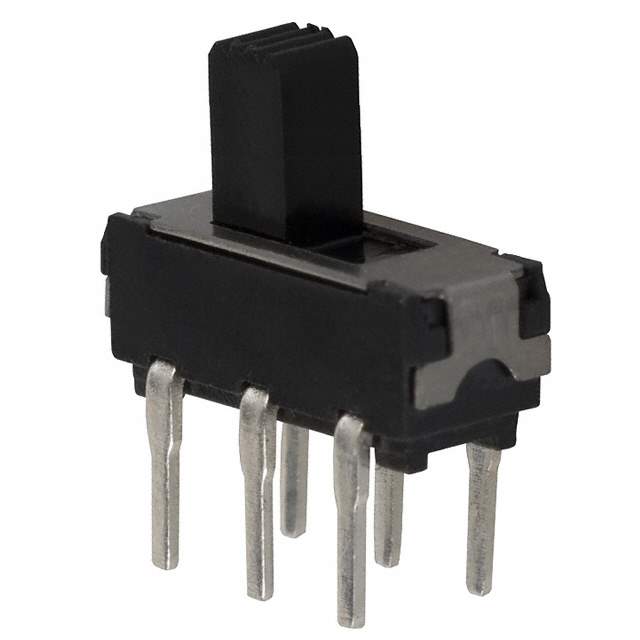

EG1271A Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr E-Switch
Series EG
Package Bulk
Circuit SPDT
Contact Timing Non-Shorting (BBM)
Switch Function On-On
Current Rating (Amps) 300mA (DC)
Voltage Rating - DC 30 V
Actuator Type Standard
Actuator Length 4.40mm
Contact Material Copper Alloy
Contact Finish Silver
Mounting Type Through Hole
Termination Style PC Pin
Temperature Range - Operating -20°C ~ 70°C
Switch Travel 2.00mm
Operating Force 200gf
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Other Names Q3093634Z,P040047,EG1919
Standard Package 1,000
Win Source Part Number 1034659-EG1271A
Ultra Librarian 3D Model Ultra Librarian EG1271A CAD Model

Description

The E-Switch EG series slide switch has a circuit of SPDT and a switch function of On-On.

  • Circuit: SPDT
  • Switch Function: On-On
  • Voltage Rating: 30 V
  • Current Rating: 300mA (DC)
  • Contact Finish: Silver
  • Contact Material: Copper alloy
  • Actuator Type: Standard
  • Actuator Length: 4.40mm
  • Switch Travel: 2.00mm
  • Operating Force: 200gf
  • Termination Style: PC pin
  • Package: Bulk
  • Mounting Type: Through hole
  • Temperature Range: -20°C ~ 70°C
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.50.9050
