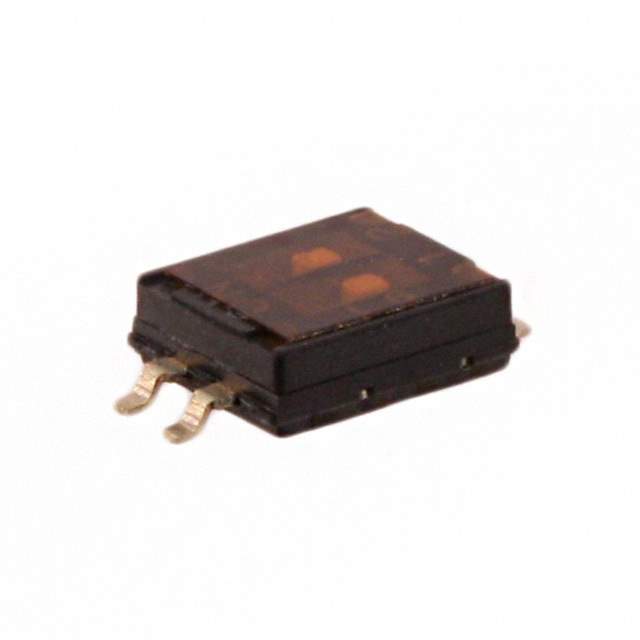

KAN1102RT Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Manufacturer E-Switch
Series KAN
Packaging Tube
Circuit SPST
Number of Positions 2
Current Rating 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.063" (1.60mm)
Mounting SMD
Termination Style Gull Wing
Pitch 0.050" (1.27mm), Half
Washable Yes
Features Tape Seal
Body Material Polyphenylene Sulfide (PPS)
Length 0.148" (3.77mm)
Operating Temperature Range -40°C ~ 85°C
Mechanical Life 2,000 Cycles
Electrical Life 2,000 Cycles
Win Source Part Number 1192532-KAN1102RT
Manufacturer Homepage www.e-switch.com
Popularity Medium
Supply and Demand Status Limited
Family Name KAN
Introduction Date October 29, 2008
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian KAN1102RT CAD Model

Description

The E-Switch 1192532-KAN1102RT is a tube packaged switch with 2 positions and a pitch of 0.050" (1.27mm), half.

  • Positions: 2
  • Pitch: 0.050" (1.27mm), half
  • Termination Style: Gull Wing
  • Operating Temperature Range: -40°C ~ 85°C
  • Electrical Life: 2,000 cycles
  • Mechanical Life: 2,000 cycles
  • Manufacturer Homepage: www.e-switch.com
  • Win Source Part Number: 1192532-KAN1102RT
