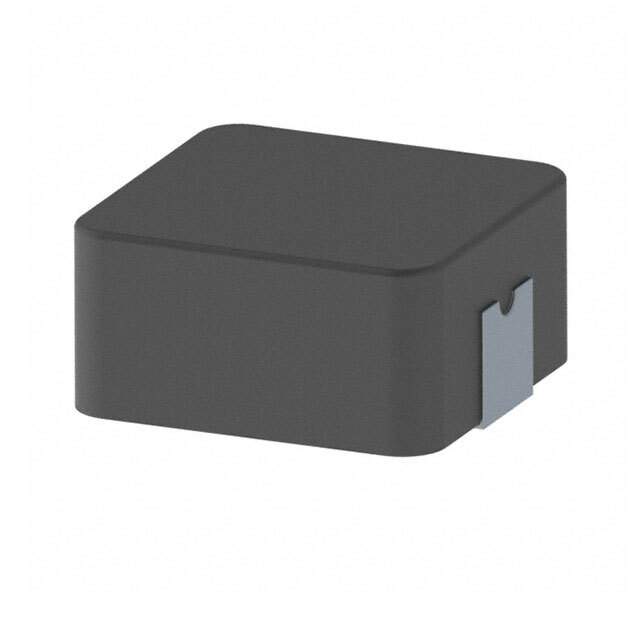

HCM1A1307-220-R

Name: HCM1A1307-220-R
Brand: Eaton Bussmann
SKU: 1192429
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	HCM1A1307-220-R
Manufacturer	Eaton Bussmann
Catalog	Fixed Inductors
Description	FIXED IND 22UH 4.8A 35 MOHM SMD / 22 µH Shielded Inductor 4.8 A 35mOhm Max Nonstandard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Eaton - Electronics Division
Series	HCM1A
Package	Tape & Reel
Material - Core	Iron Powder
Inductance	22 µH
Tolerance	±20%
Current Rating (Amps)	4.8 A
Current - Saturation (Isat)	8A
Shielding	Shielded
DC Resistance (DCR)	35mOhm Max
Ratings	AEC-Q200
Temperature Range - Operating	-55°C ~ 155°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.539" L x 0.512" W (13.70mm x 13.00mm)
Height - Seated (Max)	0.256" (6.50mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	HCM1A1307-220,283-HCM1A1307-220-RTR,283-HCM1A1307-220-RDKR,283-HCM1A1307-220-RCT,HCM1A1307-220-R-ND
Standard Package	250
Win Source Part Number	1192429-HCM1A1307-220-R
Ultra Librarian 3D Model	Ultra Librarian HCM1A1307-220-R CAD Model

Alternative Products

Description

The HCM1A1307-220-R inductor is a fixed inductor that belongs to the HCM1A series. This shielded inductor has an inductance of 22 µH and a tolerance of ±20%.

Series: HCM1A
Inductance: 22 µH
Tolerance: ±20%
Temperature Range: -55°C to 155°C
DC Resistance (DCR): 35mOhm Max
Current Rating: 4.8 A
Dimension: 0.539" L x 0.512" W (13.70mm x 13.00mm)
Mounting: SMD (SMT)
Core Material: iron powder
AEC-Q200: rated
Packaging: tape & reel
Standard Package: 250
ECCN: EAR99
Supplier: Eaton - Electronics Division
