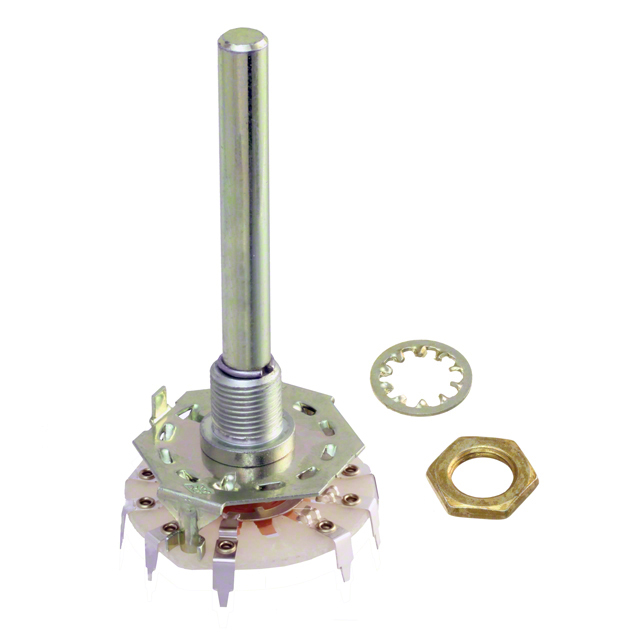

C7D0223N Electroswitch – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Number of Positions 23
Index Stops Fixed
Number of Decks 2
Number of Poles per Deck 1
Circuit per Deck SP23T
Contact Timing Non-Shorting (BBM)
Current Rating (Amps) 500mA (AC), 1A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 28 V
Actuator Type Flatted (6.35mm Dia)
Actuator Length 14.29mm
Angle of Throw 15°
Contact Material Brass
Contact Finish Silver
Mounting Type Panel Mount
Termination Style Solder Lug
Depth Behind Panel 32.49mm
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1559477-C7D0223N
Ultra Librarian 3D Model Ultra Librarian C7D0223N CAD Model
