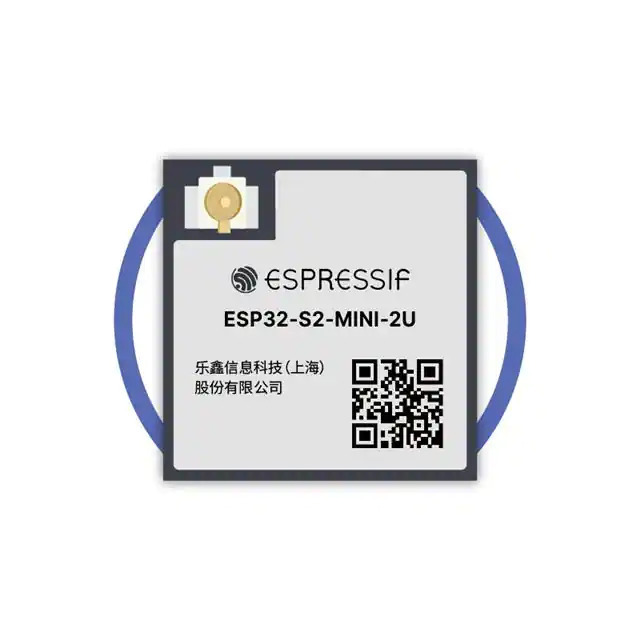

Same model may have multiple batches, images only for reference.

ESP32-S2-MINI-2U-N4R2

Name: ESP32-S2-MINI-2U-N4R2
Brand: Espressif
SKU: 1370908
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	ESP32-S2-MINI-2U-N4R2
Manufacturer	Espressif
Catalog	RF Transceiver Modules
Description	SMD MODULE, ESP32-S2FN4R2 WITH 4
Datasheet	ESP32-S2-MINI-2U-N4R2 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	RF and Wireless - RF Transceiver Modules and Modems
Mfr	Espressif Systems
Series	ESP32
Package	Bulk
Product Status	Active
RF Family/Standard	WiFi
Protocol	802.11b/g/n
Modulation	-
Frequency	2.4GHz
Data Rate	150Mbps
Power - Output	19.5dBm
Sensitivity	-97dBm
Serial Interfaces	ADC, GPIO, I²C, I²S, SPI, PWM, UART, USB
Antenna Type	Antenna Not Included, U.FL
Utilized IC / Part	ESP32-S2FN4R2
Memory Size	4MB Flash, 2MB PSRAM, 128kB ROM, 336kB SRAM
Voltage - Supply	3V ~ 3.6V
Current - Receiving	63mA ~ 68mA
Current - Transmitting	160mA ~ 310mA
Mounting Type	Surface Mount
Temperature Range - Operating	-40°C ~ 85°C (TA)
Package / Case	56-VFQFN Exposed Pad
Base Product Number	ESP32-S2
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	5A992C
HTSUS	8517.62.0090
Win Source Part Number	1370908-ESP32-S2-MINI-2U-N4R2
Ultra Librarian 3D Model	Ultra Librarian ESP32-S2-MINI-2U-N4R2 CAD Model

Alternative Products

Description

The ESP32-S2-MINI-2U-N4R2 is a high-performance RF transceiver module designed by Espressif Systems.

Product Name: ESP32-S2-MINI-2U-N4R2
Manufacturer: Espressif Systems
Frequency Range: 2.4GHz
Protocol: WiFi
Package: 56-VFQFN exposed pad
Mounting: Surface Mount
Voltage Supply: 3V to 3.6V
Flash Memory: 4MB
PSRAM: 2MB
ROM: 128kB
SRAM: 336kB
Data Rate: 150Mbps
Serial Interfaces: ADC, GPIO, I²C, I²S, SPI, PWM, UART, USB
Power Output: 19.5dBm
Sensitivity: -97dBm
