09731246907 HARTING – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

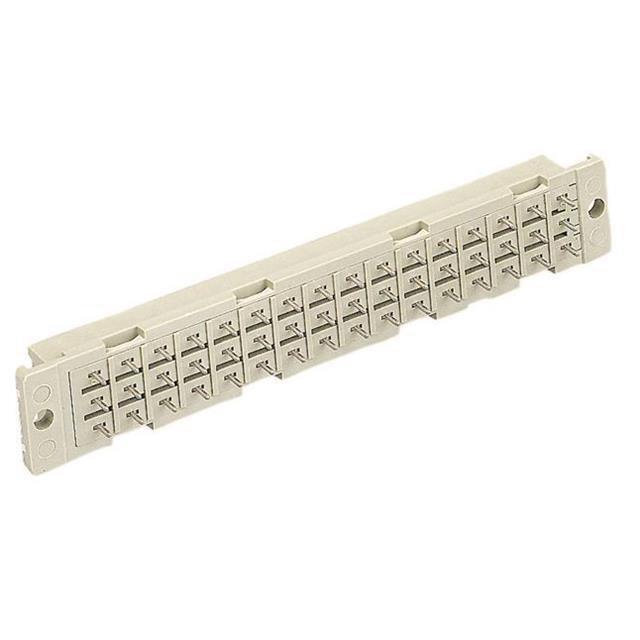

09731246907

Part No 09731246907
Manufacturer HARTING
Catalog DIN 41612 Connectors
Description CONN DIN HDR 32POS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Header, Male Pins
Number of Positions 32 (24 + 8 Coax or Power)
Number of Positions Loaded 24
Pitch 0.100" (2.54mm)
Number of Rows 3
Style M
Level, Class 2
Mounting Type Through Hole
Termination Solder
Contact Finish Gold-Palladium
Contact Finish Thickness Flash
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1612110-09731246907
Ultra Librarian 3D Model Ultra Librarian 09731246907 CAD Model
