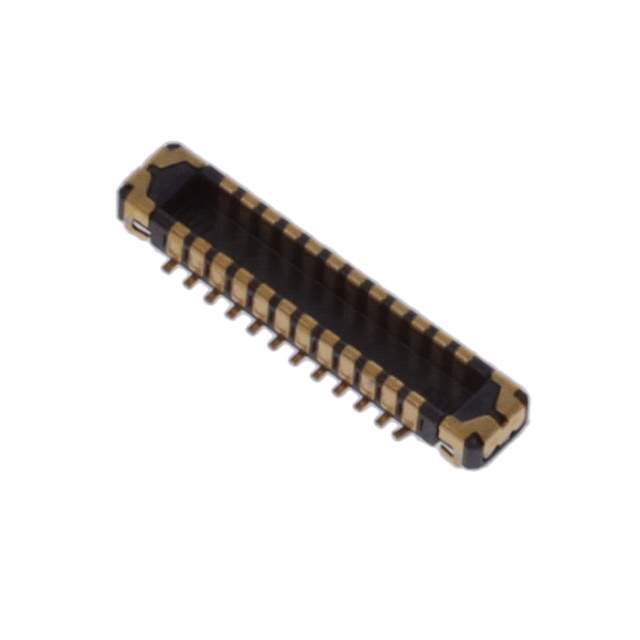

BM23PF0.8-24DP-0.35V(895) Real Image
Same model may have multiple batches, images only for reference.

BM23PF0.8-24DP-0.35V(895)

Part No BM23PF0.8-24DP-0.35V(895)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HDR 24POS SMD GOLD / 24 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Datasheet
BM23PF0.8-24DP-0.35V(895) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series BM23
Package Tape & Reel
Connector Type Header, Outer Shroud Contacts
Number of Positions 24
Pitch 0.014" (0.35mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 1.97µin (0.050µm)
Mated Stacking Heights 0.8mm
Height Above Board 0.025" (0.63mm)
Base Product Number BM23PF0.8
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names H125645DKR,BM23PF0.8-24DP-0.35V(895)-ND,H125645TR,H125645CT,480-0291-0-95
Standard Package 1,000
Win Source Part Number 1114263-BM23PF0.8-24DP-0.35V(895)
Ultra Librarian 3D Model Ultra Librarian BM23PF0.8-24DP-0.35V(895) CAD Model

Description

The BM23PF0.8-24DP-0.35V(895) is a rectangular connector array from Hirose Electric Co Ltd.

  • Connector Type: Header
  • Contact Type: Outer Shroud
  • Number of Positions: 24
  • Pitch: 0.014" (0.35mm)
  • Features: Solder Retention
  • Contact Finish: Gold
  • Contact Finish Thickness: 1.97µin (0.050µm)
  • Mated Stacking Heights: 0.8mm
  • Height Above Board: 0.025" (0.63mm)
  • Package: Tape & Reel
  • Mounting Type: SMD (SMT)
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.69.4040
